Growlink LINKS batch tankLINK

Streamline Tank Monitoring & Management

The Growlink LINKS batch tankLINK offers precise, automated monitoring and management of nutrient tanks, seamlessly integrating with the Growlink system for streamlined operations. Featuring sensor inputs for EC, pH, temperature and tank levels, it continuously tracks nutrient concentrations and automates refills to maintain optimal conditions with minimal manual oversight. With built-in data logging and real-time alerts for deviations, the Batch TankLINK ensures consistent performance and reliable nutrient delivery throughout every growth phase. This advanced tank management solution is proudly made in the USA.

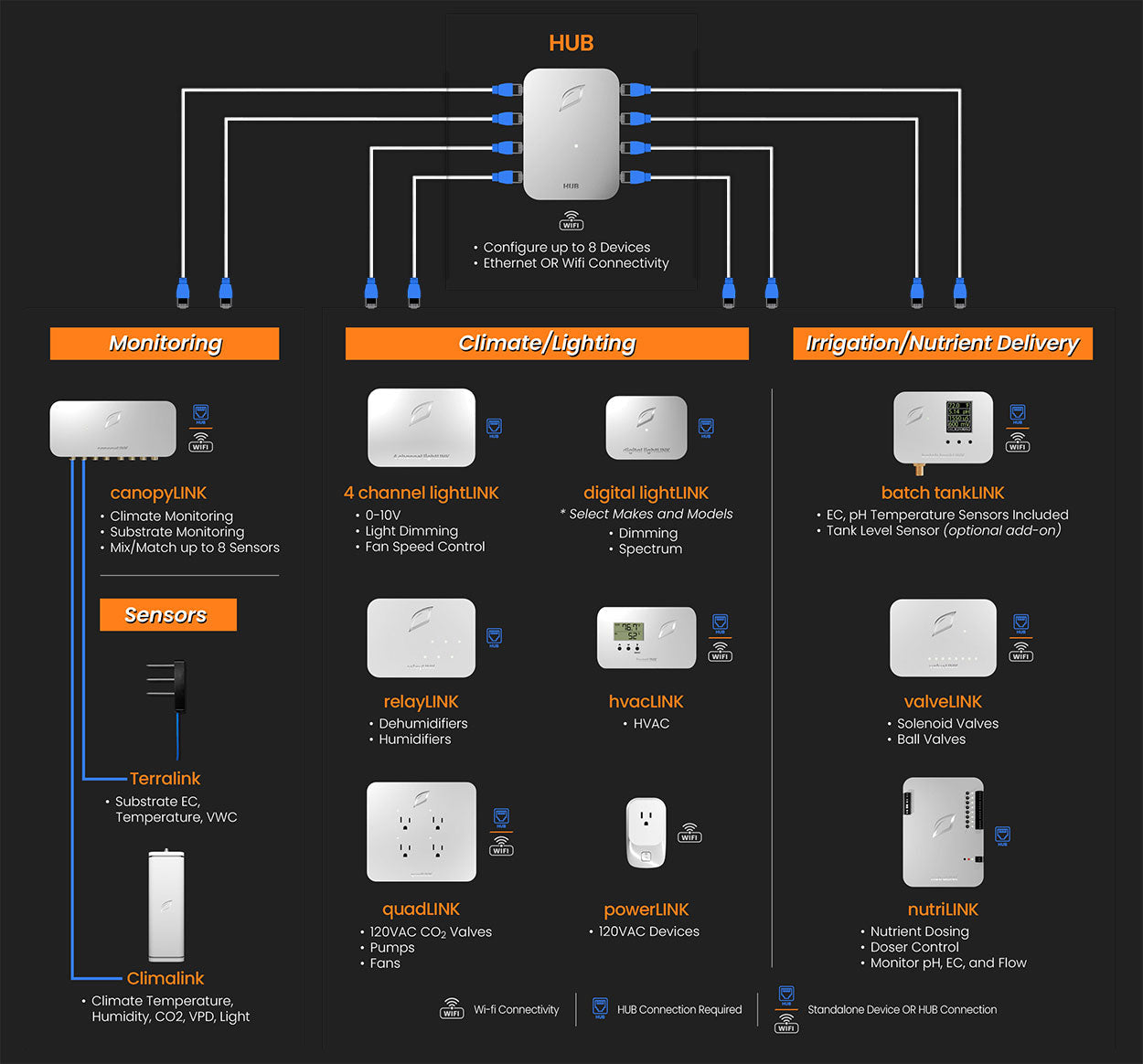

• Compatible with Growlink LINKS Automation Modules
• Equipped pH, EC, and Temperature Sensors

Includes

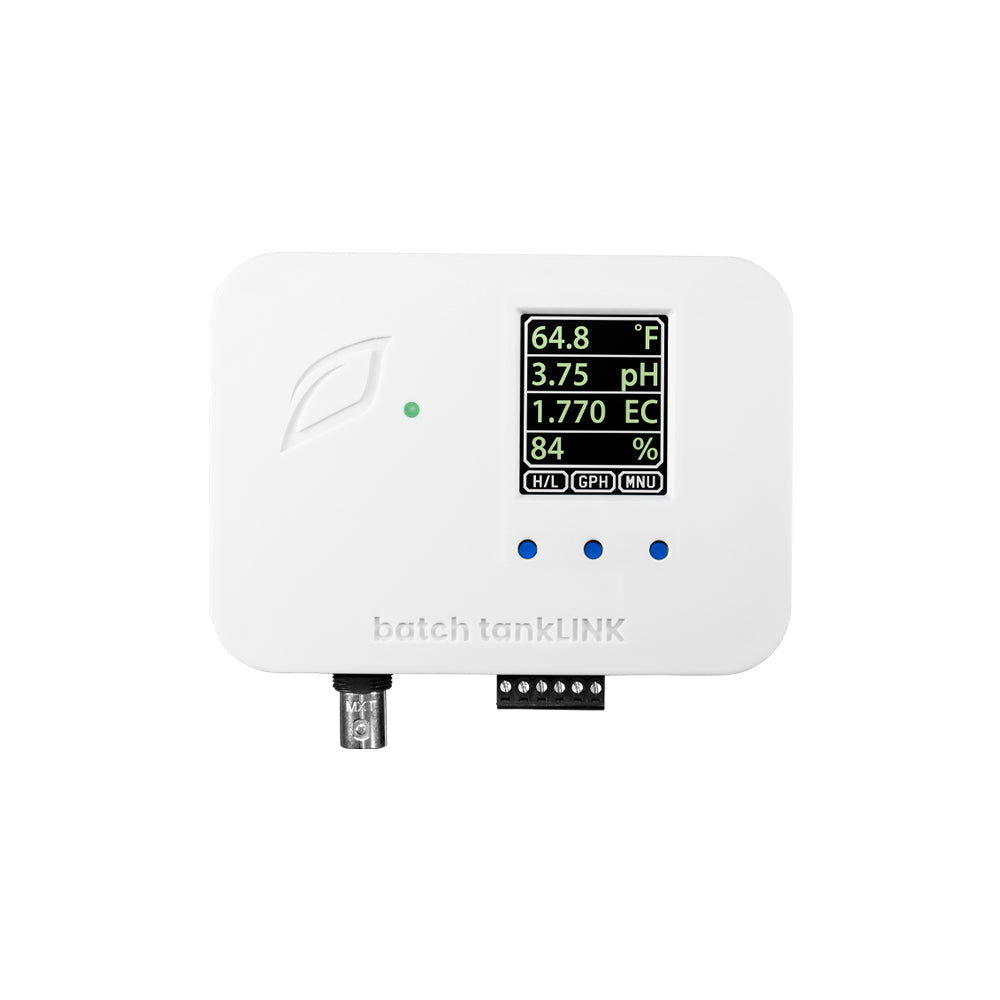

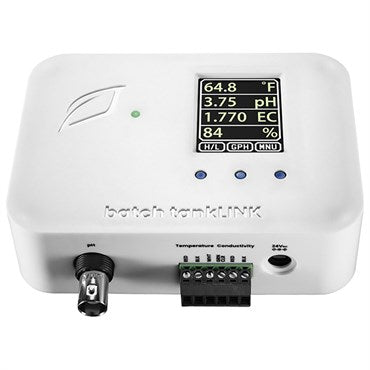

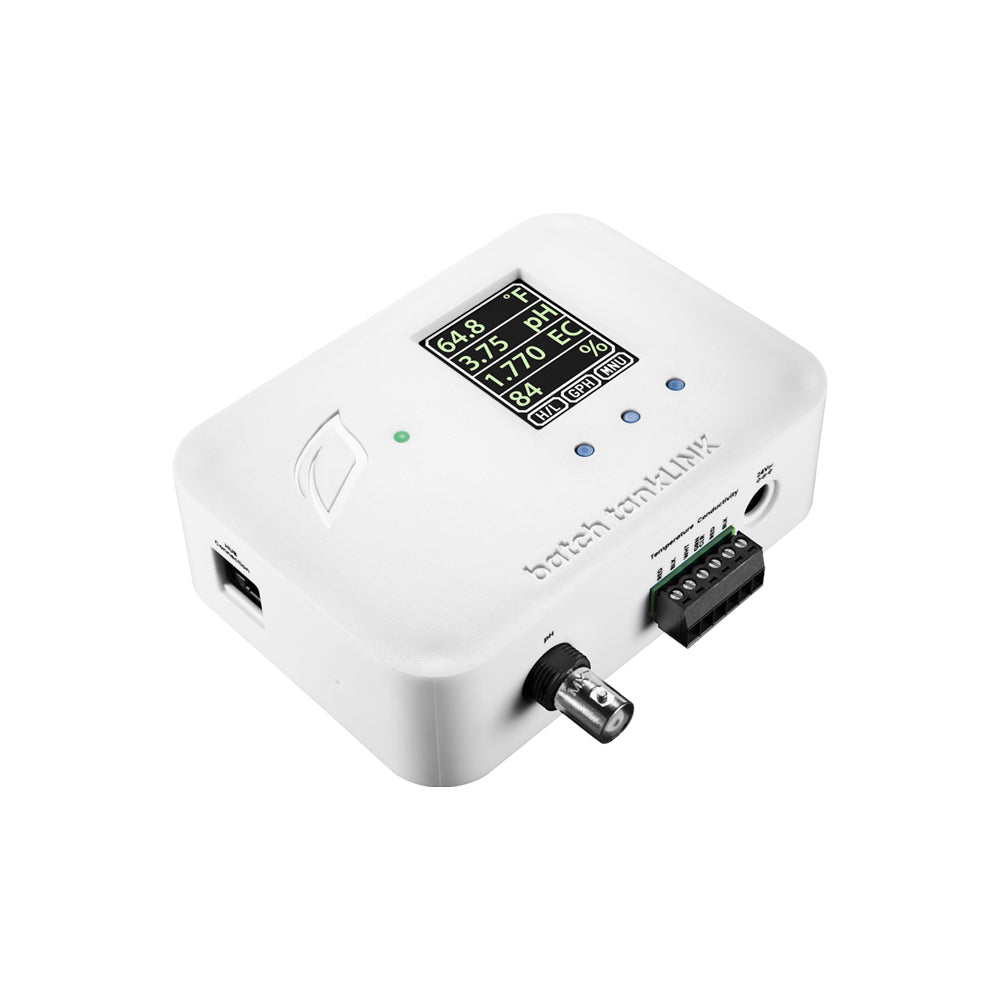

• (1) Batch TankLINK

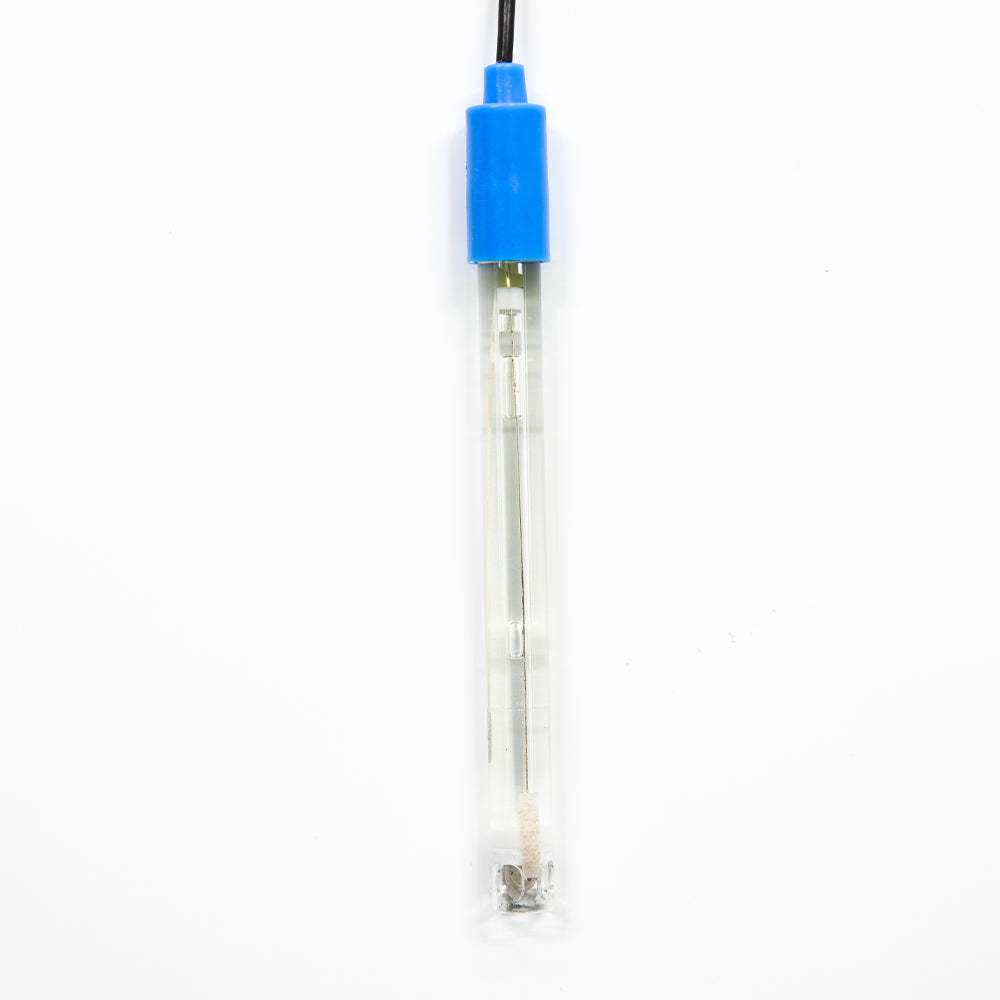

• (1) pH Probe

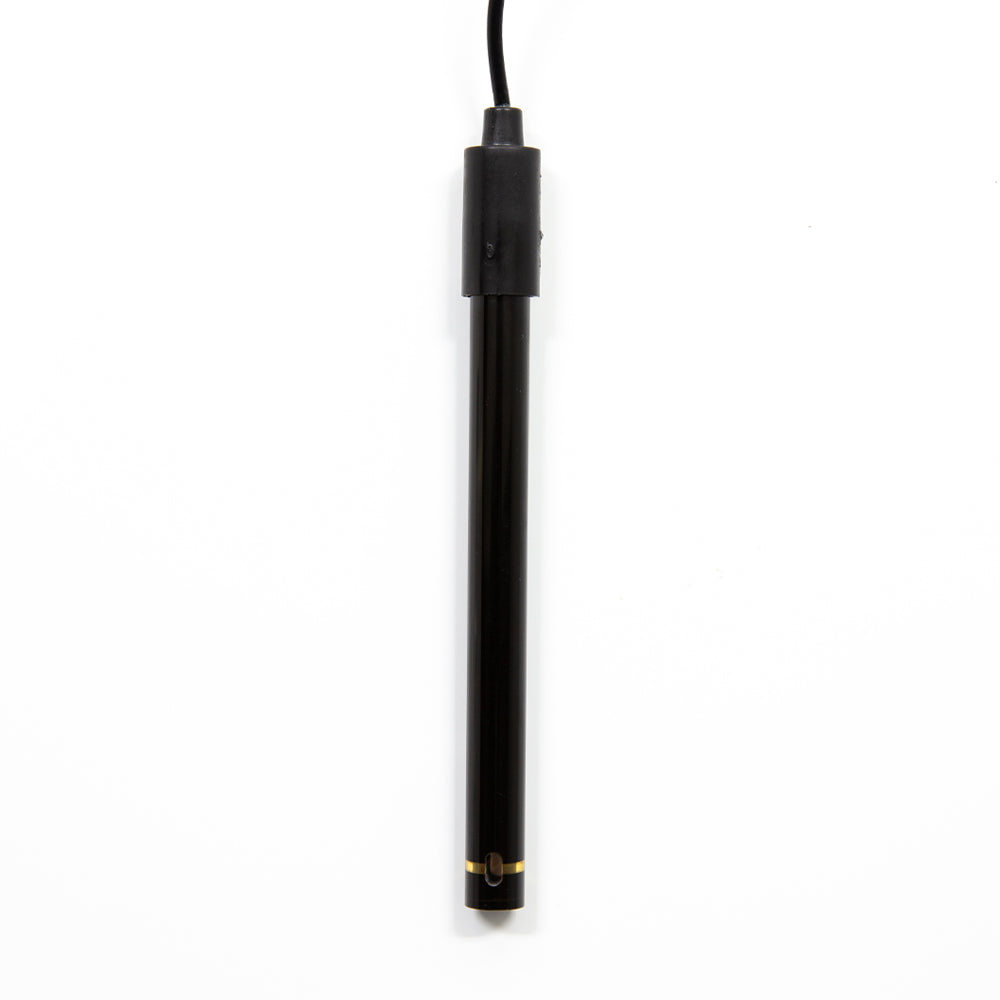

• (1) EC Probe

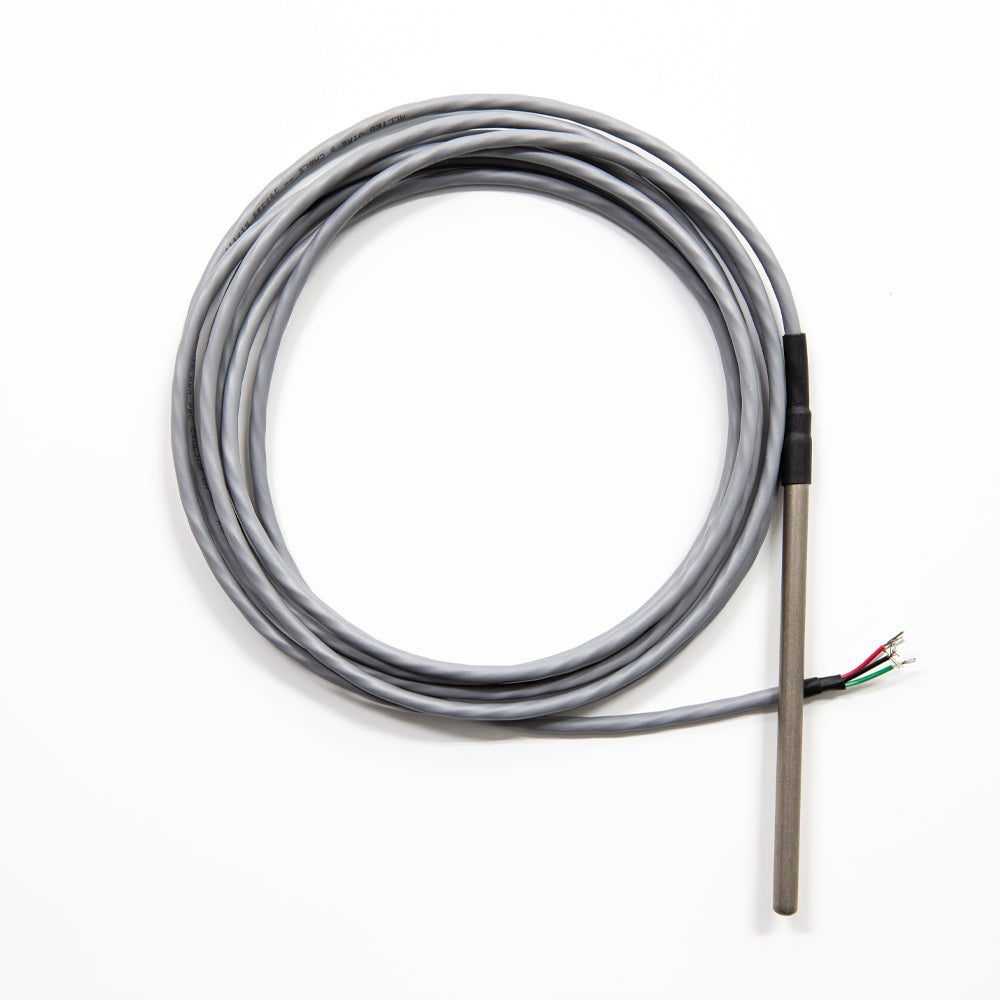

• (1) Temperature Probe
• (1) AC/DC Power Supply
• (1) Mounting Kit, (1) 10 ft. RJ-45 Cable
• (1) Mini Screwdriver


Inputs

• (1) RJ-45 Port for Connection to HUB
• (1) BNC Connection for pH Probe
• (1) Terminal Block for EC and Temperature Probe
• (1) Molex Connector for 4-20mA Input

Specifications

• Voltage: 24VDC
• Power Consumption: -5W
• Temperature Range: 50-122°F
• Humidity Range: 0-75% RH (Non-Condensing)
• pH Sensor Range: 0-14
• pH Accuracy: +/- 0.02pH, 0.01pH Resolution
• EC Sensor Conductivity Range: 0-7000 µS
• EC Sensor Conductivity Accuracy: <2000 µS +/- 20 µS, <2000 µS +/- 50 µS, 2 µS
• Resolution
• Temperature Sensor Range:
• Temperature Sensor Accuracy: +/- 3.6°F (+/- 2°C), 0.02°F Resolution
• Package Dimensions: 7.5" L x 7.5" W x 4" H
