Aero-Fan 20 inch High Velocity Fan

Aero-Fan 20 inch High Velocity Fan

$379.05
$379.05
Sale Sold out

Due to the holidays, many fulfillment centers are working on limited hours for the remainder of the year and SOME SHIPMENTS MAY BE DELAYED. Thank you for your understanding. Happy Holidays!

Shipping Restrictions

We ship throughout the lower 48 states.

Bulk Orders

For Pricing on Multiple Units, Custom Freight Quotes & Commercial Discounts Contact Us

Request a Quote

To Request a Quote either use the Quote Request option at checkout (no payment information required) or Contact Us

View full details

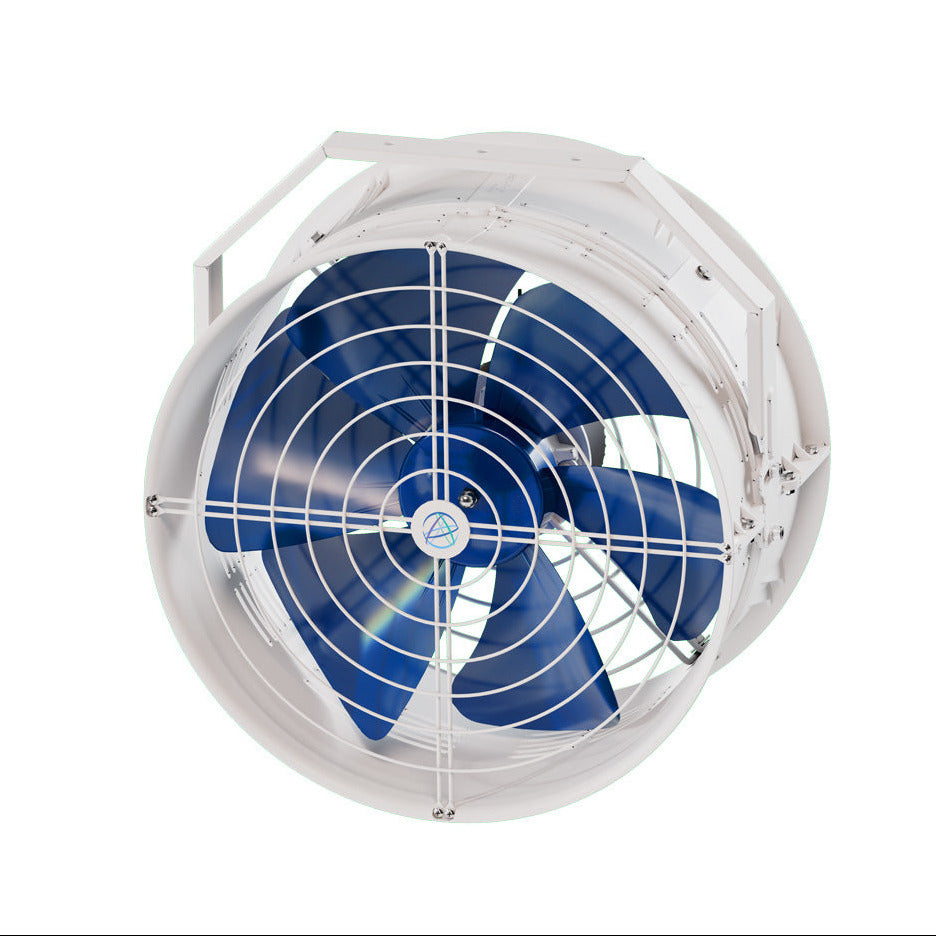

The Aero-Fan 20-Inch High Velocity Fan (HE-20) is a compact and efficient fan designed to improve air circulation and ventilation in indoor spaces. With its powerful motor, it moves a significant volume of air, removing stale air, and humidity. Its versatile design allows easy installation in various duct systems, ensuring a fresh and comfortable environment.

Features

  • Fan speed adjust by digital signal, work without VFD driver
  • 200-277VAC Automatic Voltage Sensing
  • Unparalleled Controlability Functions when paired with TrolMaster Controllers

Specifications

  • Operating Voltage: 200-277VAC
  • Rated Current: 3.0A Max
  • Rated input power: 300W Max.
  • No. of Blades: 6
  • Max. air flow: 3986 cfm
  • Max. static air pressure: 110 Pa
  • Rotating Direction: CCW
  • Operating temperature: -13~140°F
  • Mean Time To Failure (MTBF): 40000H (20°C)
  • IP Rating: IP66
  • Dimensions: 310x560x594mm
  • Net Weight: 10.5KG/23.15lb

Package Contents

  • HE-20 High Velocity Fan
  • ECS-7 Cable
  • ECS-9 Cable
