AirGrean Concealed Duct Heating & Cooling Systems

The AirGrean Concealed Duct Heating & Cooling Systems provide efficient, year-round climate control while remaining completely concealed above the ceiling or within a mechanical space. Available in 36,000 and 48,000 BTU capacities, these ducted systems deliver powerful heating, cooling and dehumidification through connected ductwork, making them ideal for commercial buildings, offices, greenhouses, indoor growing facilities and other applications where a clean, finished appearance is desired.

Designed for dependable performance and energy efficiency, AirGrean Concealed Duct Systems feature quiet operation, intelligent climate control and even air distribution throughout conditioned spaces. Select the BTU capacity that best fits your application and enjoy reliable performance backed by a 1-Year Parts Warranty and 5-Year Compressor Warranty.

Features

• Concealed ducted design
• Heating, cooling & dehumidification modes
• Turbo Mode
• ECO Mode
• High-density air filter
• Intelligent defrost
• Self-cleaning function
• Automatic swing
• Louver position memory
• Temperature compensation
• Anti-cold air protection
• Refrigerant leak detection
• Self-diagnosis & automatic protection
• Fire-resistant electrical box
• Golden Fin condenser
• R410A refrigerant
• 1-Year Parts Warranty
• 5-Year Compressor Warranty

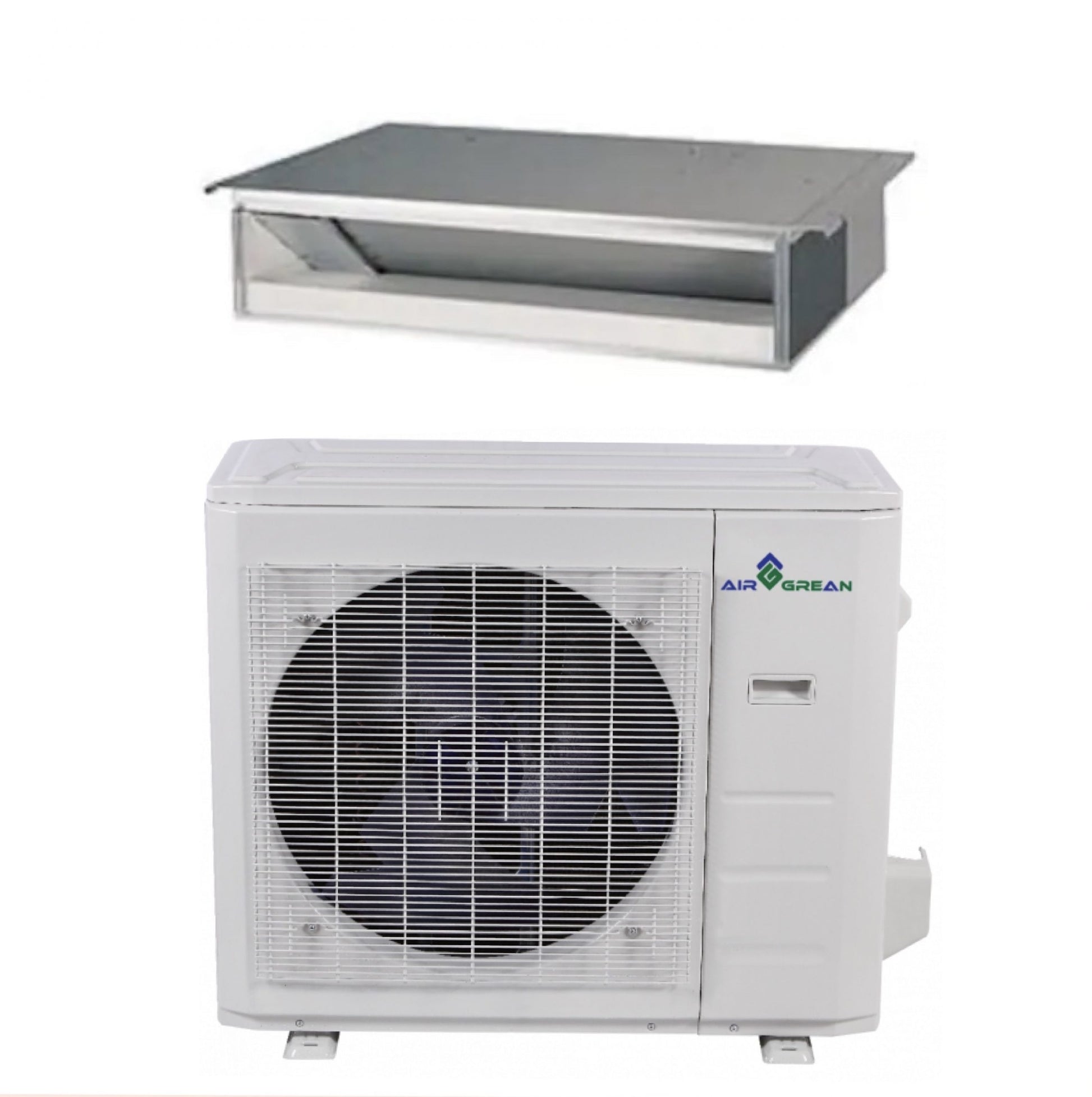

36,000 BTU (3 Ton)

• 36,000 BTU Capacity
• 22 SEER
• 208/230V / 60Hz / Single Phase
• Maximum Input: 4,800 Watts
• Maximum Current: 23 Amps
• Minimum Circuit Ampacity: 35 Amps
• Maximum Fuse: 50 Amps
• Recommended Coverage: 1,500–1,800 sq. ft.

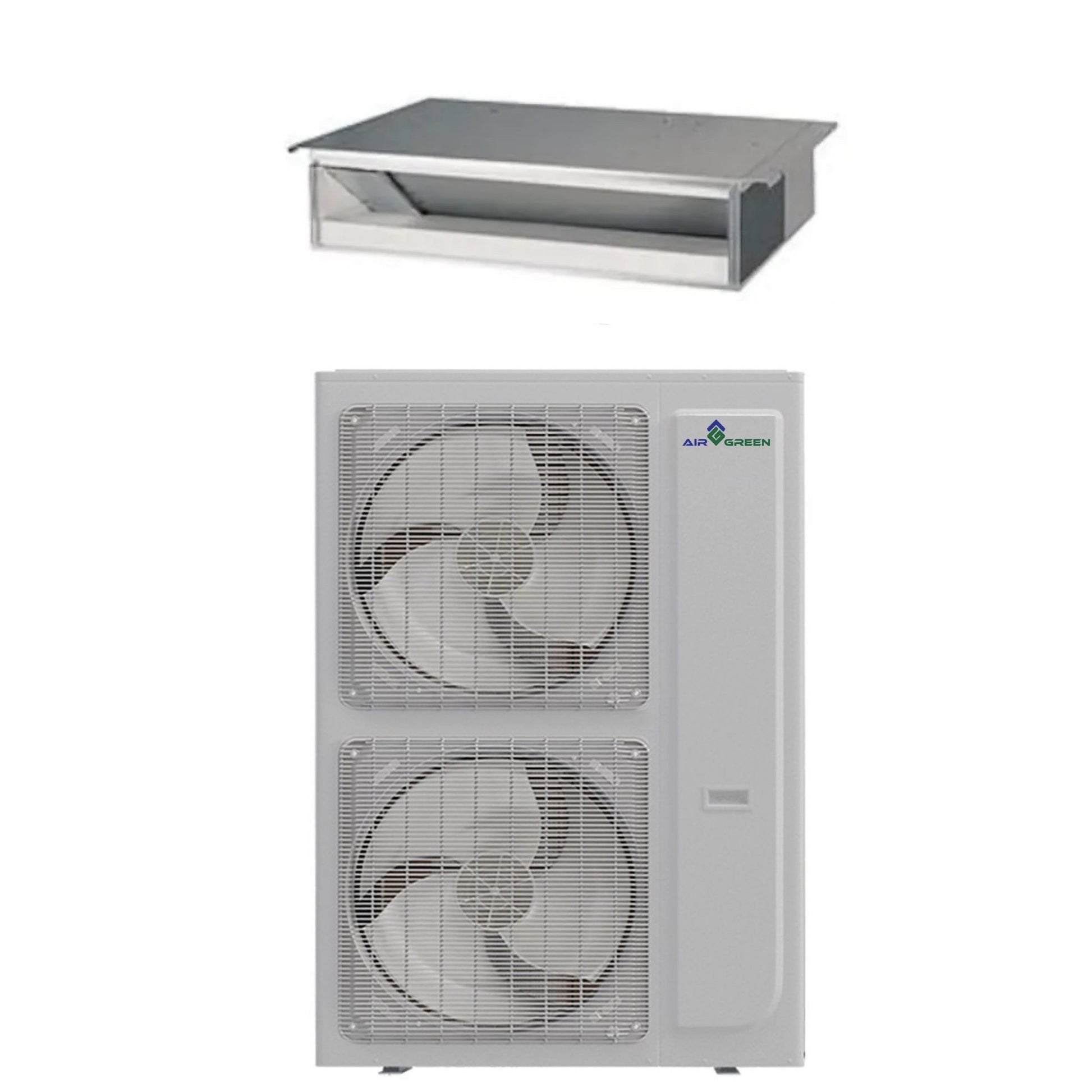

48,000 BTU (4 Ton)

• 48,000 BTU Capacity
• 22 SEER
• 208/230V / 60Hz / Single Phase
• Maximum Input: 5,900 Watts
• Maximum Current: 27 Amps
• Minimum Circuit Ampacity: 35 Amps
• Maximum Fuse: 50 Amps
• Recommended Coverage: 2,000–2,500 sq. ft.
