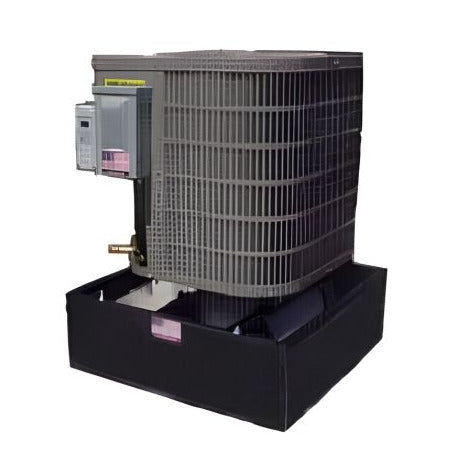

Aquagation High Performance Water Chillers

Aquagation High Performance Water Chillers are available in a range of sizes from 2 HP thru 5 HP and will maintain 2000-5000 gallons of storage water at temperatures from 65° to 80°. High-performance scroll compressors ensure reliable performance for years to come. Easy to install with fused disconnect and electronic controller installed.

Minimum Seer rating of 13 makes these water chillers extremely energy efficient. Available in 208/230v single or three-phase. Higher Seer rated Chillers available. They can operate 18-20 hours per day without issue but lower run times will save on electricity consumption. Suggested runtime 10 hours per day maximim.

Specifications:

2 HP:

• Tank Size (Gallons): up to 2000
• Flow Rate Min-Max: 35-70 GPM
• Inlet/Outlet: 1-1/2 Inch
• Weight (lbs): 260
• Dimensions (LxWxH): 27x27x39"
• Amps: 12.5
• Voltage: 220V Single Phase
• BTU Rating: 24000

3 HP:

• Tank Size (Gallons): up to 3000
• Flow Rate Min-Max: 40-75 GPM\
• Inlet/Outlet: 1-1/2 Inch
• Weight (lbs): 275
• Dimensions (LxWxH): 33x33x40"
• Amps: 14.25
• Voltage: 220V Single Phase
• BTU Rating: 36000

4 HP:

• Tank Size (Gallons): up to 4000
• Flow Rate Min-Max: 45-80 GPM
• Inlet/Outlet: 2 Inch
• Weight (lbs): 300
• Dimensions (LxWxH): 34x34x42"
• Amps: 17.25
• Voltage: 220V Single Phase
• BTU Rating: 48000

5 HP:

• Tank Size (Gallons): up to 5000
• Flow Rate Min-Max: 50-85 GPM
• Inlet/Outlet: 2 Inch
• Weight (lbs): 325
• Dimensions (LxWxH): 34x34x42"
• Amps: 21.75
• Voltage: 220V Single Phase
• BTU Rating: 60000
