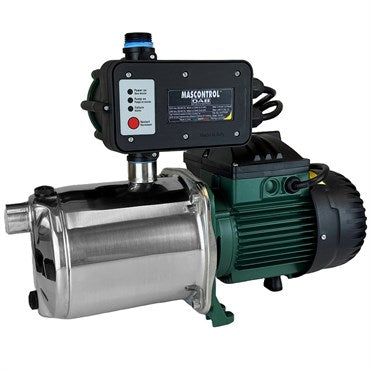

DAB EUROINOX 50/506 Multistage Centrifugal Pump

Coming Soon!

The DAB EUROINOX 50/506 Multistage Centrifugal Pump w/ Mas Control was engineered for quiet, reliable operation. Its stainless steel body and corrosion-resistant components deliver long-lasting durability in demanding grow environments. Equipped with an electronic Mas Control safety device to prevent dry-running, it is ideal for hydroponic water supply, nutrient circulation and system pressurization. Also suitable for domestic water systems, irrigation and general water movement, this pump ensures consistent flow and pressure for both residential and professional applications.

115V/230V Dual Voltage - 1 to 32 gpm - 7.4 to 14.6 A - 1.36 hp - 116 psi

Note: Replaces Leader Ecotronic 250 (#LDR60115861)

Applications: Domestic water pressurization, pressurization for irrigation systems, and pressurization of sprinklers & sprinkler systems.

Liquid Quality Requirements: Clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallized, and chemically neutral.

Specifications

• Power Supply: 115V / 230V, 60Hz Dual Voltage
• Operating Range: 1-32gpm; Head up to 236ft (102 psi)
• P1 Max: 1.5 kW
• P2 Nominal: 1 kW, 1.36 HP
• Input: 14.6- 7.4 Amps
• Capacitor: 80 μF, 250 Vc
• Maximum Operating Pressure: 116 psi (8 bar)
• Maximum Suction Depth: 26 ft
• Maximum Ambient Temperature: 104°F
• Liquid Temperature Range: 32°F to +95°F
• Discharge Port (DNA): 1in NPT
• Delivery Port (DNM): 1in NPT
• Installation: Fixed or portable in a horizontal position
• Packing Dimensions: 18.9in x 8.3in x 10.4in
• Shipping Weight: 33.3 lb
• Product Code: 60119516

Materials

• Pump Body: Stainless Steel
• Motor Support: Die-Cast Aluminum
• Seal Holder: AISI 304 Steel
• Mechanical Seal: Carbon/Ceramic
• Rotor Shaft: AISI 304 Steel
• Rotors, Diffuser Bodies and Diffusers: Technopolymer
• Adjustment Rings: Stainless Steel
