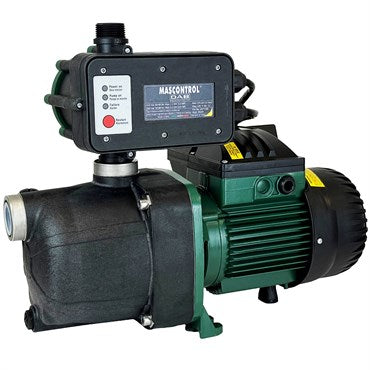

DAB JETCOM 132 Self-Priming Centrifugal Pump

Coming Soon!

The DAB JETCOM 132 Self-Priming Centrifugal Pump w/ Mas Control was engineered for dependable water movement in hydroponic, residential and irrigation applications. Its durable technopolymer body and internal ejector allow it to handle air bubbles and small quantities of sand without losing prime. Equipped with Mas Control electronic protection against dry-running, it ensures safe and efficient operation. With a head up to 158 ft (48 m), strong suction capacity and optimized motor cooling, the JETCOM delivers consistent flow for nutrient delivery, pressure boosting and general water supply.

115V/230V Dual Voltage - 1.8 to 46.2gpm - 7.52 to 14.7 A - 1.36 hp - 87 psi

Note: Replaces Leader Ecotronic 130 (#LDRUS230001)

Applications: Domestic water supply installations, small scale agriculture, gardening and wherever self- priming operation is necessary.

Liquid Quality Requirements: Clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallized, and chemically neutral.

Specifications

• Power Supply: 115V / 230V, 60Hz Dual Voltage
• Operating Range: 1.8 to 46.2gpm; Head up to 203ft
• P1 Max: 1.57 kW
• P2 Nominal: 1 kW, 1.36 HP
• Input: 14.7- 7.52 Amps
• Capacitor: 80 μF, 450 Vc
• Maximum Operating Pressure: 87psi (6 bar)
• Maximum Ambient Temperature: 104°F
• Liquid Temperature Range: 32°F to +95°F (Domestic), 32°F to +104°F (Other)
• Protection: IP 44 (IP 55 terminal board protection)
• Insulation Class: F
• Installation: Fixed or portable in a horizontal position
• Pump Body & Motor Support: Technopolymer
• Product Code: 60119501
