• F5 Turbo EC Fans - 8 Inch
  • F5 Turbo EC Fans
  • F5 Turbo EC Fans
1 2

F5

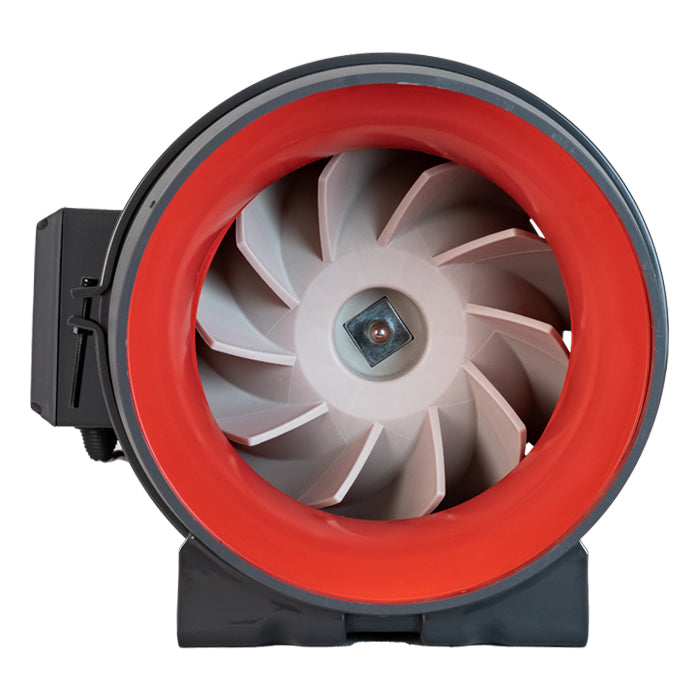

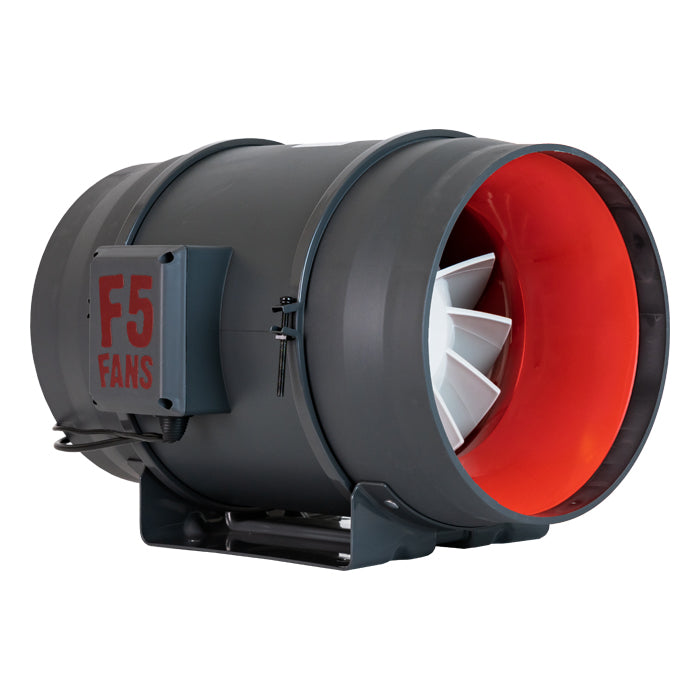

F5 Turbo EC Fans

F5 Turbo EC Fans

$175.00
$175.00
Sale Sold out

Shipping Restrictions

We ship throughout the lower 48 states.

Bulk Orders

For Pricing on Multiple Units, Custom Freight Quotes & Commercial Discounts Contact Us

Request a Quote

To Request a Quote either use the Quote Request option at checkout (no payment information required) or Contact Us

View full details
F5 Turbo EC Fans are Electronically Commutated (EC) to combine AC and DC voltages, bringing the best of both worlds. As a result, they offer high efficiency, low noise, lightweight design and continuous motor speed control. EC motors are significantly smaller, providing advantages in terms of installation and overall quiet operation.

Specifications: 8 Inch

  • Motor Type - 3-Phase EC Motor
    Voltage - 110v / 60Hz -240v/50Hz
    Current (Amps) - 2.3A
    Power (Watts) - 180W
    Max Speed (RPM) - 3000
    Max Air Flow - 721CFM
    Pressure (Pa) - 746Pa
    Noise (dB) - =50dB
    Net Weight: 10.8lbs
    Packaging Dimensions - 12.4" x 10.2" x 10.2"
    Construction - Ball Bearings / PP / ABS

Specifications: 10 Inch

  • Motor Type - 3-Phase EC Motor
    Voltage - 110v / 60Hz -240v/50Hz
    Current (Amps) - 2.7A
    Power (Watts) - 255W
    Max Speed (RPM) - 3000
    Max Air Flow - 1065CFM
    Pressure (Pa) - 1059Pa
    Noise (dB) - =56dB
    Net Weight - 17.4lbs
    Packaging Dimensions - 17.5" x 16.3" x 14.2"
    Construction - Ball Bearings / PP / ABS

Specifications: 12 Inch

  • Motor Type - 3-Phase EC Motor
  • Voltage - 110v / 60Hz -240v/50Hz
  • Current (Amps) - 2.5A
  • Power (Watts) - 250W
  • Max Speed (RPM) - 2350
  • Max Air Flow - 1375CFM
  • Pressure (Pa) - 818Pa
  • Noise (dB) - =55dB
  • Net Weight - 24.9lbs
  • Packaging Dimensions - 20.1" x 19.1" x 17.3"
  • Construction - Ball Bearings / PP / ABS
