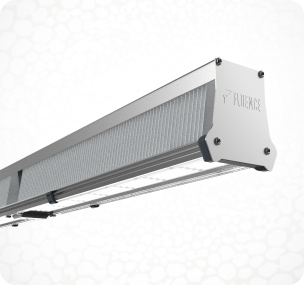

The Fluence VYPR 3p LED Top Light features market-leading efficacies and high light output enabling the direct replacement of a 1000W HPS fixture at more than 40% energy savings. Optimizing spectral content and light levels, the PhysioSpec BROAD Spectra offers photon emission across the PAR 400-700nm continuous wavelength range, balancing energy efficiency with quality of light for desired plant response and human work environment.
Available in PhysioSpec BROAD Spectra R4 (Indoor) and PhysioSpec BROAD Spectra R3 (Greenhouse Applications).
Specifications
- Light Distribution (Beam Angle): 120°
- Light Output PPF: 1690-2330 µmol/s
- Efficacy: 2.7-3.8 µmol/J @ 277V AC
- AC Input Power: 610-623W @ 277V AC
- AC Input Voltage: 120-277 V AC, 277-480 V AC, 50/60 Hz
- Power Factor: > 0.98 (120-277 V AC); > 0.97 (277-480 V AC)
- Total Harmonic Distortion: < 10%
- Dimming: Dim to off, 1-10 V, 10-100%, M12 Connector
- Thermal Management: Passive
- Max. Ambient Temperature: 95°F
- IP Rating: IP66
- Certifications: DLC, ETL, cETL, CE, Wet Location
- Industry Standards: DLC, UL1598, UL8750, UL8800, IEC 60598-1
- UL 8750 Output Voltage Rating: Class 2
- IEC 61347-1 Electrical Insulation: Class I
- DLC Reported Application: Greenhouse, Indoor (Non-stacked)
- Position/Use Case: Top light/Sole-source or Supplemental
- Dimensions (Unit): 42.17in x 2.91in x 3.23in ,
- Dimensions (Power Supply): 12.99in x 5.26in x 3.23in
- Weight: 7.8lb (Unit), 7.1lb (Power Supply)
- Warranty: 5 Year Limited
Includes: 3ft DC Cord, Pipe Hangers and 11in Dimming Cable. AC Cord sold separately.
