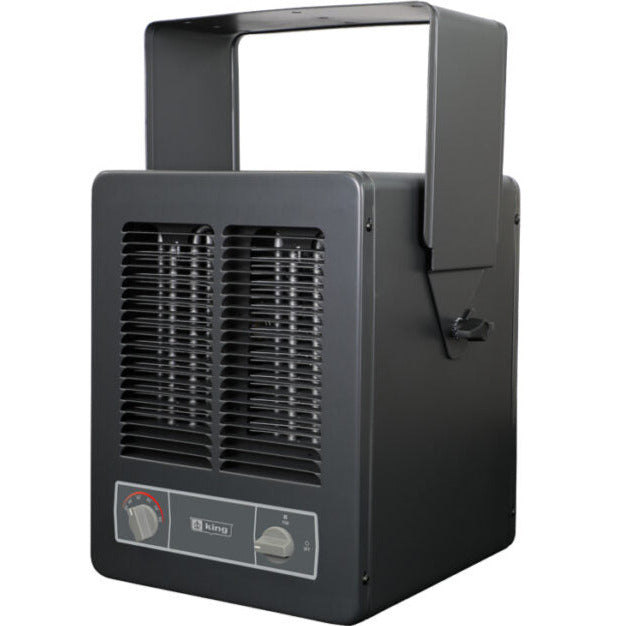

King Electric KBP Unit Heaters

King Electric KBP Unit Heaters are the industry standard for multi-wattage garage/shop heaters and provides an idea solution for greenhouse heating. The flow-through design efficiently heats large spaces. With high quality components suitable commercial applications, it comes standard with a 3-position switch and a built-in thermostat. The integral fan delay continues to dissipate heat from the elements during the cool down period, maximizing the heat exchange in the room. King’s dual Pic-A-Watt steel fin elements allows a range of wattage options, tailoring the heater to an area’s specific heating requirements.

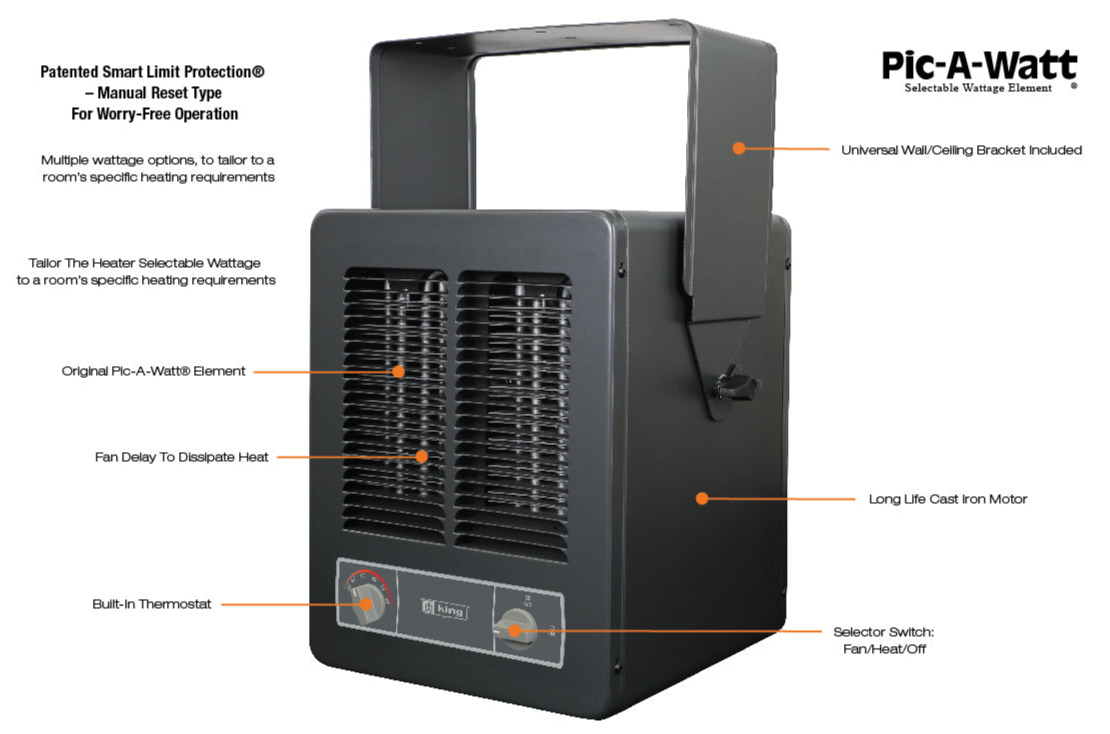

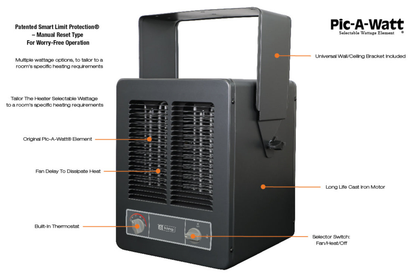

• New Standard Color: Onyx Gray
• Patented Smart Limit Protection®
• Built-in Thermostat
• Long Life Cast Iron Motor
• Fan Delay To Dissipate Heat
• Universal Wall/Ceiling Bracket Included
• 270 CFM
• 5-Year Limited Warranty

Available Models Specifications

KBP1230:

• Watts: 2850-1900-950
• BTUH: 9,727 - 3,242
• Phase: 1
• Volts: 120
• Amps: 23.8-15.8-7.9

KBP2406:

• Watts: 5700-4750-3800-2850-1900-950

• BTUH: 19,454 - 3,242

• Phase: 1
• Volts: 240/208

• Amps: 23.8-19.8-15.8-11.9-7.9-4


KBP2006-3MP:

KBP2406-3MP:

KBP2704:

KBP4806-3MP:

• Watts: 6000

• BTUH: 20,478

• Phase: 1-3

• Volts: 480

• Amps: 7.2
