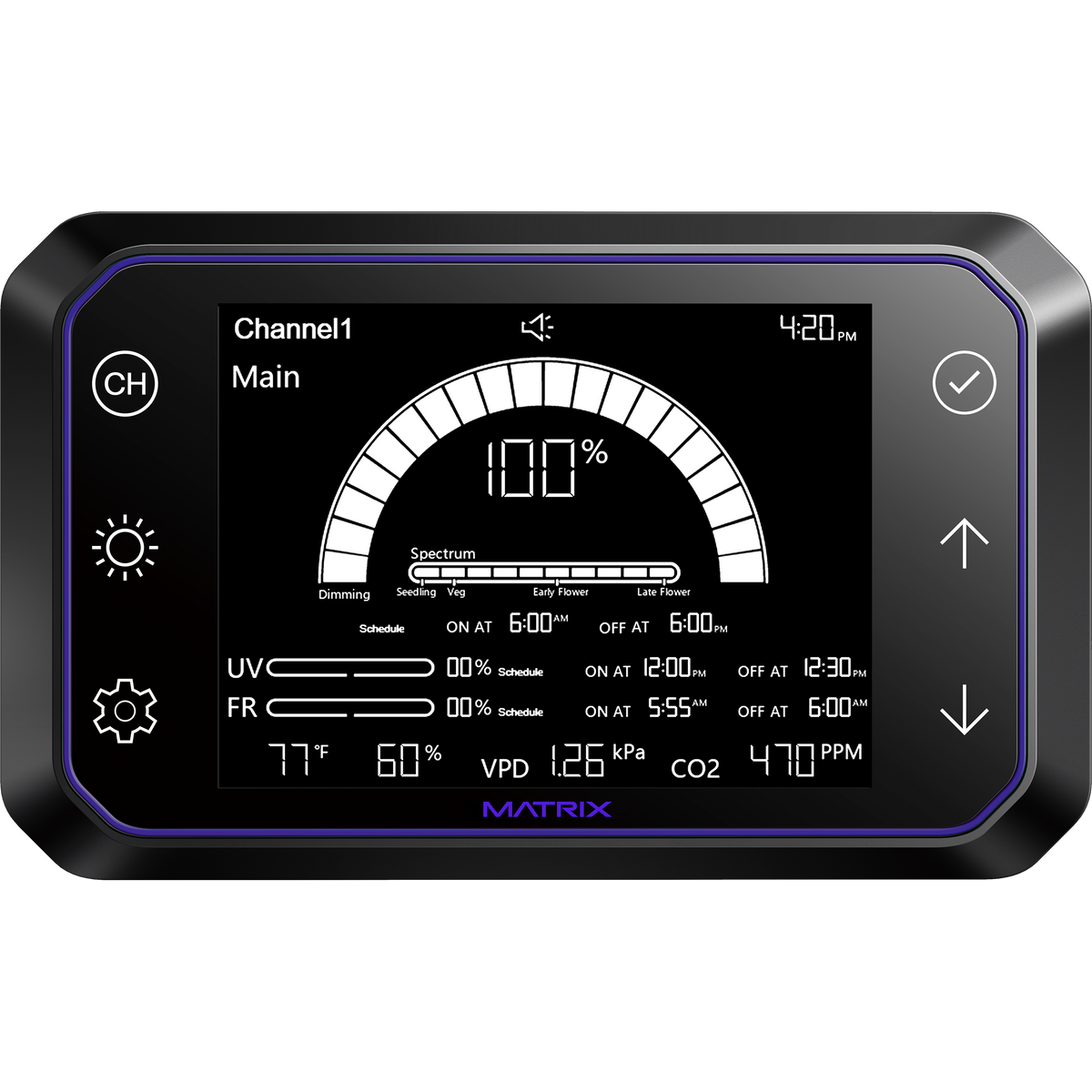

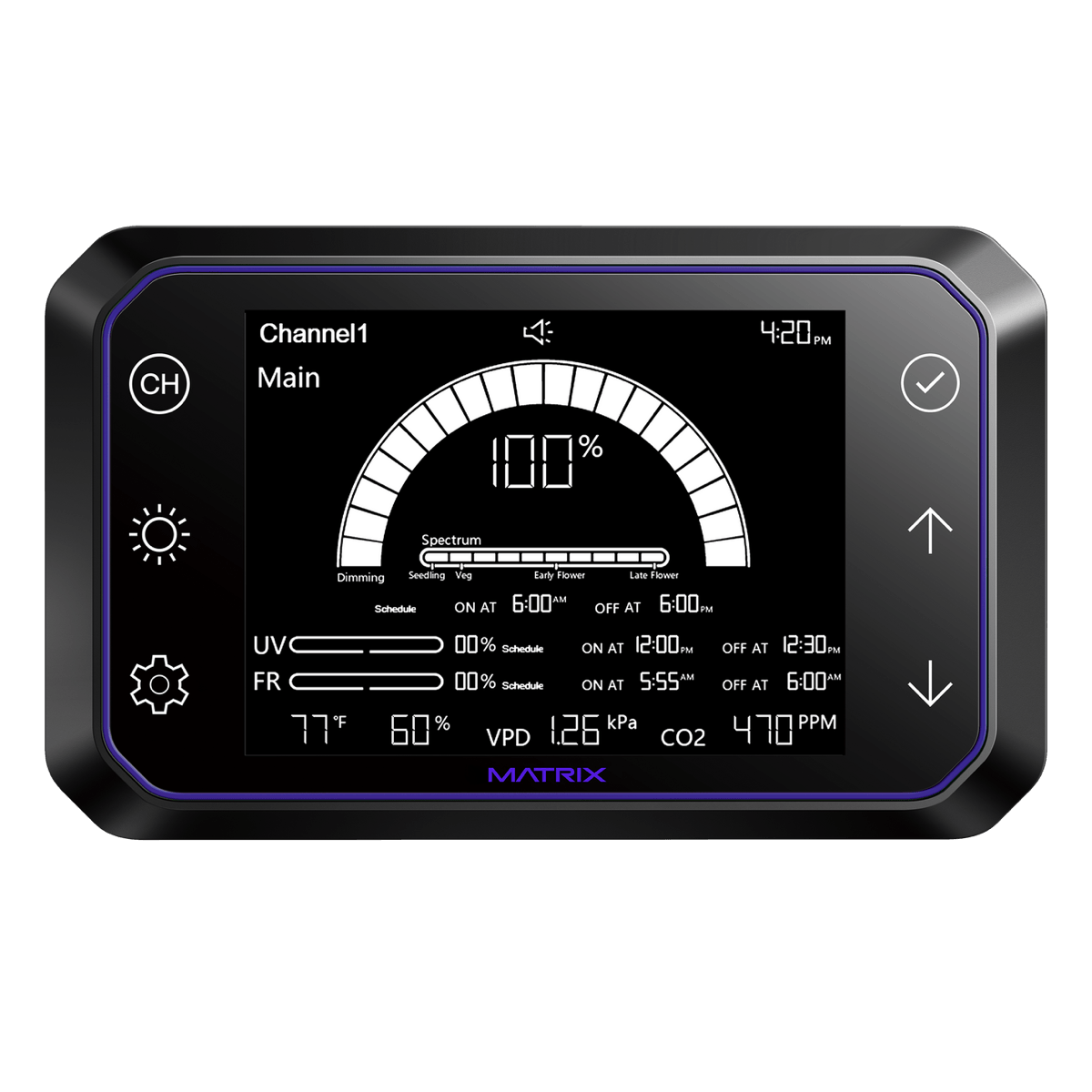

The Matrix MC5 Lighting Controller is a dedicated advanced lighting controller purpose-built for the complete Matrix LED and Hybrid lineup. Designed for growers who want full spectrum precision without third-party software or complex setup, the MC5 delivers reliable, hands-on control that simply works.

The MC5 controller allows growers to independently control the three lighting channels on the Matrix Hybrid 1000W:

  • Main Spectrum – Primary red and white lighting used for the core photoperiod.
  • Far Red (FR) – Used for advanced spectrum control and plant signalling.
  • HPS Channel – Supplemental spectrum designed to replicate traditional HPS characteristics.

This separation allows growers to fine-tune spectrum output and intensity depending on plant stage, canopy structure, and cultivation strategy.

Two Independent Lighting Channels to allow flexible layout design and scalable system growth.  Each channel supports:

  • Up to 80 fixtures via 0–10V
  • Up to 100 fixtures via RS-485

Specifications:

Adapter Input 12V, 1A
Controller Channels 2 Independent Channels
Lighting Control Levels 0%, 25%, 40%, 50%, 60%, 80%, 100%
Signal Types 0–10V / RS-485
Fixtures per Channel 80 (0–10V) / 100 (RS-485)
Operating Temperature -20°C to 80°C
Humidity Range 0% to 100%
Sensor Included Temperature & Humidity Sensor Included as Standard
Compatibility Matrix LED and Matrix Hybrid systems (complete Matrix Lighting lineup)
