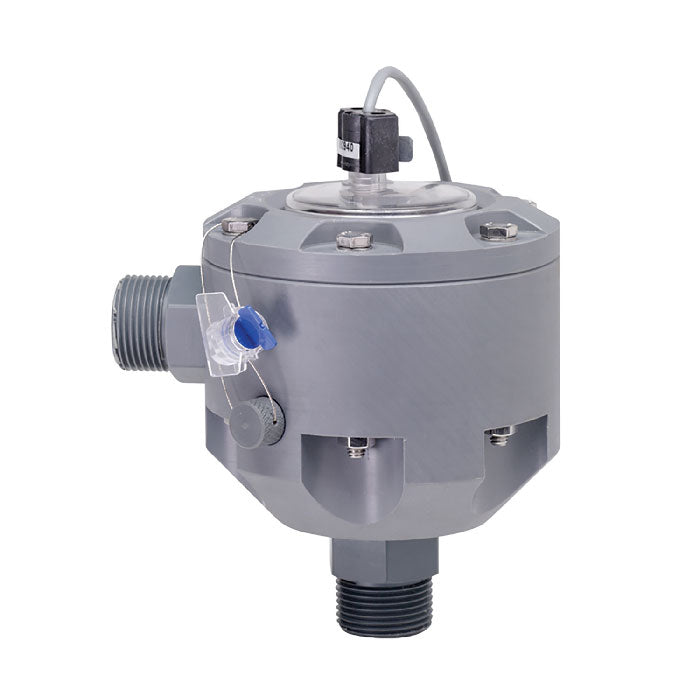

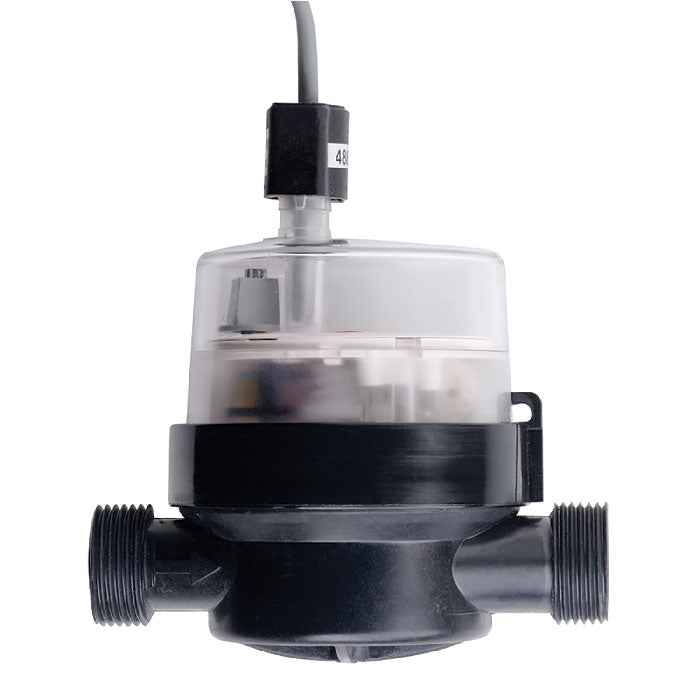

Netafim Fertilizer Meters with a polypropylene or PVC body. The polypropylene fertilizer meter is small, lightweight and delivers a high level of accuracy. It’s compact size, corrosion resistant plastic components are ideal for fertilizer control in automated irrigation systems. Available in ¾” size. The PVC fertilizer meter is an angle type multi-jet meter. This design assures an equally distributed load on the impeller minimizing wear and maintaining accuracy. Available in 1” size.
Features
- Both meters are light-weight and deliver a high level of accuracy, ±2%.
- Only one moving part, the impeller, is in contact with the liquid for minimum wear and the utmost reliability.
- Corrosion resistant plastic components.
- PVC body is an angle type multi-jet meter. The multi-jet design assures an equally distributed load on the impeller minimizing wear and maintaining accuracy.
- No straight pipe installation requirements.
Advantages
- Magnetically driven sealed register is guaranteed not to accumulate moisture or fog.
- Dry contact electrical output driven by a magnetic coupling that activates a reed switch creating a pulsed output for communicating with control and monitoring equipment.
Fertilizer control in automated irrigation systems. More Information
Specifications – Plastic
- Size: 3/4″
- Maximum Working Pressure: 72.5 psi
- Maximum Liquid Temperature: 122°F
- Body Material: Polypropylene
- Connections:Threaded
- Pulse Output: 0.1 or 1.0
Specifications – PVC
- Size: 1″
- Maximum Working Pressure: 145 psi
- Maximum Liquid Temperature: 122°F
- Body Material: PVC
- Connections: Threaded
- Pulse Output: 1.0
