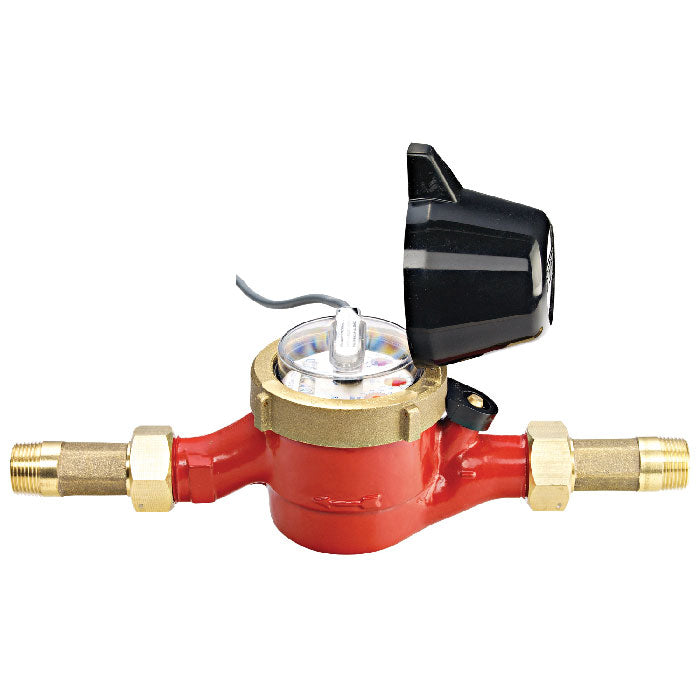

• Netafim M Series Water Meters

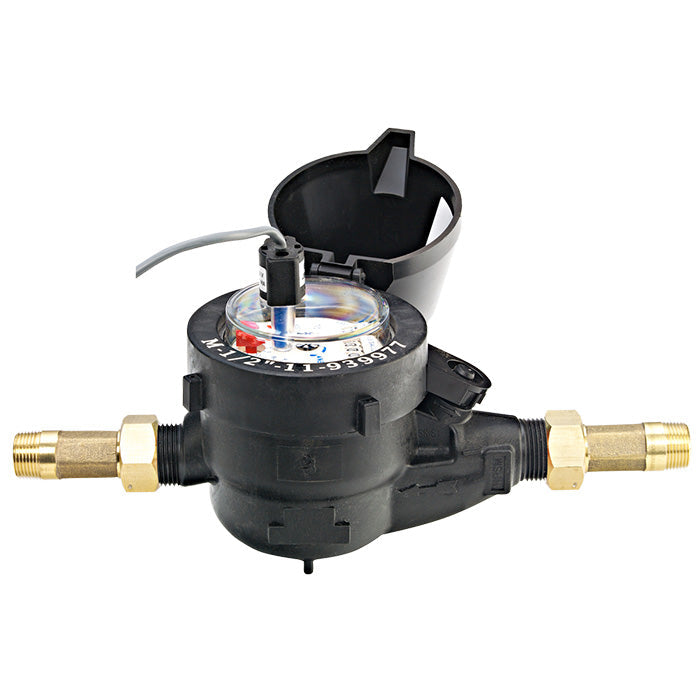

  • Netafim M Series Water Meters - Plastic Body

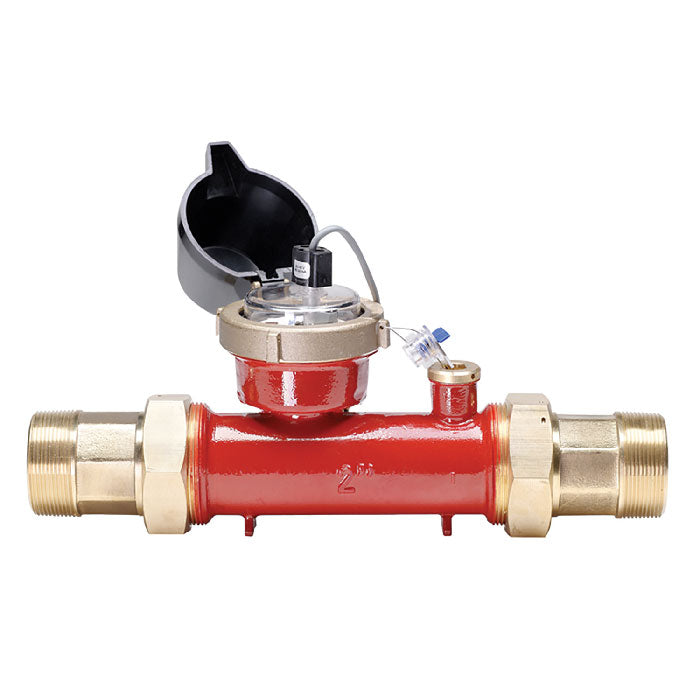

  • Netafim WMR Series Water Meter
1 1

Netafim

Netafim M & WMR Series Water Meters

Netafim M & WMR Series Water Meters

Shipping Restrictions

We ship throughout the lower 48 states.

Bulk Orders

For Pricing on Multiple Units, Custom Freight Quotes & Commercial Discounts Contact Us

Request a Quote

To Request a Quote either use the Quote Request option at checkout (no payment information required) or Contact Us

View full details

Netafim M & WMR Water Meters are the industry’s smallest water meters offering best in class performance, cost and longevity. The M utilizes the multi-jet principle assuring an equally distributed load on the impeller minimizing wear and maintaining accuracy. The WMR contains an in-line axial turbine which allows foreign matter to pass through the meter without clogging. Wide clearances in the measuring chamber and negligible area of contact between static and moving parts are the main reasons for the high reliability of this design even in hard water.

Features

    • Industry’s smallest water meters provide ±2% accuracy over a wide range of flows.
    • Magnetically driven sealed registers are stainless steel encapsulated and guaranteed not to accumulate moisture or fog.
    • ‘M’ Water Meters utilize the multi-jet principle assuring an equally distributed load on the impeller minimizing wear and maintaining accuracy.
    • ‘M’ Water Meters have only one moving part, the impeller, is in contact with the water for minimum wear and the utmost reliability.
    • ‘WMR’ Water Meters contain an in-line axial turbine which allows foreign matter to pass through the meter without clogging.
    • Wide clearances in the measuring chamber provide full pipe flow measurements and high reliability.

    For main supply lines in agriculture and landscape applications. More Information

    'M' Water Meter Specifications

    • Iron Body Sizes: 3/4″, 1″ and 1 1/2″
    • Plastic Body Sizes: 3/4″ and 1″
    • Maximum Working Pressure: 140 psi
    • Maximum Liquid Temperature: 122°F
    • Body Material: Corrosion Proof Copper Alloy or Polypropylene (plastic)
    • Connections: Male Pipe Thread
    • Register Options: Reed Switch, Photo Diode or ER Digital
    • Reed Switch Register Pulse Outputs: 0.1 or 1.0
    • Photo Diode Register Pulse Outputs: 0.0015, 0.0021 or 0.0074
    • ER Register Pulse Outputs: Gallons – .1, 1, 10, 100, 1000; Acre Feet – .0001, .001, .01, .1
    • Straight Pipe Installation Requirement: None

    ‘WMR’ Water Meter Specifications

    • Size: 2″
    • Maximum Working Pressure: 230 psi
    • Maximum Liquid Temperature: 131°F
    • Body Material: Cast Iron with Polyester Coating
    • Connections: Male Pipe Thread
    • Register Options: Reed Switch, Photo Diode or ER Digital
    • Reed Switch Register Pulse Outputs: 10 or 3.26
    • Photo Diode Register Pulse Outputs: 1.0 or 0.055
    • ER Register Pulse Outputs: Gallons – .1, 1, 10, 100, 1000; Acre Feet – .0001, .001, .01, .1
    • Straight Pipe Installation Requirement: 10 x D upstream and 5 x D downstream (D = meter size
