Netafim

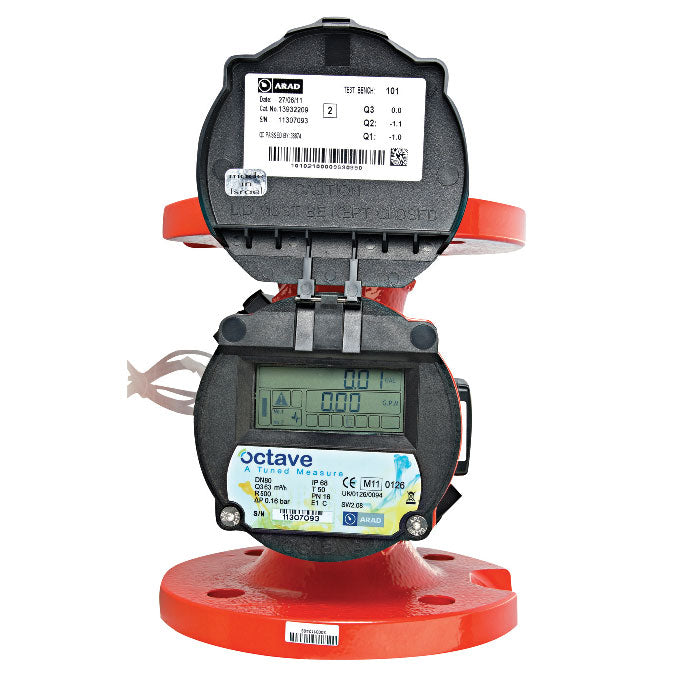

Netafim Octave Ultrasonic Water Meters

Netafim Octave Ultrasonic Water Meters

Shipping Restrictions

We ship throughout the lower 48 states.

Bulk Orders

For Pricing on Multiple Units, Custom Freight Quotes & Commercial Discounts Contact Us

Request a Quote

To Request a Quote either use the Quote Request option at checkout (no payment information required) or Contact Us

View full details

Netafim Octave Ultrasonic Water Meters have a ± 1.5% accuracy for nominal flow rates. The vacuum sealed and tamper proof register provides durability and long-term performance. A multi-line digital readout display provides immediate reporting and visual indicators for critical conditions. Lithium batteries provide a 10 year life expectancy. Octave also offers a 5 year pro-rated warranty – the industry’s longest.

Features

    • Double-beam ultrasonic sensors provide highly accurate flow data and reliable operation.
    • No impeller or moving parts in the flow path provides for unrestricted, low pressure loss flows.
    • Reduced maintenance of wear-prone parts commonly found in other meters.
    • Flow ranges from <1 GPM to 5,500 GPM.
    • Multi-line readout screen provides complete flow and volume information along with:
      • Leak detection
      • Flow direction
      • Output mode
      • Battery level
      • Alarms and errors
      • Active communication mode
    • Vacuum sealed and tamper proof IP68 register provides durability and long-term performance.
    • Lithium batteries provide a 10 year life expectancy.

    Advantages

    • Each meter has a unique, unalterable bar-coded serial number for identification.
    • Standard registers are programmed to log and display both forward and reverse flow. Physically reversing the meter will not decrease the forward flow totalizer.
    • Each meter ships with a certificate verifying flow accuracy with a ± 1.5% accuracy for nominal flow rates.

    Specifications

      • Sizes: 2″, 3″, 4″, 6″, 8″, 10″ and 12″
      • Body: Epoxy-coated cast iron with flange inlet and outlet
      • Maximum working pressure: 230 psi
      • Fluid Temperature Range: 32° to 122° F (0.1° to 50° C)
      • Connection: Flanges ANSI ISO for AWWA Connection Standard
      • Power Source: 2 ‘D’ Size non-replaceable Lithium batteries
      • Environmental Protection: IP-68, Ambient operation temperature for display: -13 to 131° F (-25° to 55° C)
      • Output (optional): Programmable single/dual open collector pulse output or externally powered 4-20 mA loop

      More Information
