• Patterson Fan - Beam Clamp Mount
  • Patterson Fan Beam Clamp Mount
1 2

Patterson Fan

Patterson | Beam Clamp Mount

Patterson | Beam Clamp Mount

$104.65
$104.65
Sale Sold out

Shipping Restrictions

We ship throughout the lower 48 states. Contact Us to see if specific items can be sent elsewhere.

Bulk Orders

Contact Us for Pricing on Multiple Units, Customized Freight Quotes & Commercial Discounts

Request a Quote

To Request a Quote you can go to Checkout and use the Quote Request Option (No Payment Details Necessary) or Contact Us

View full details

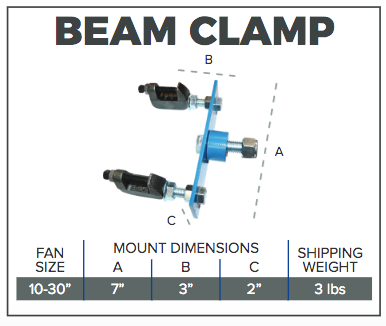

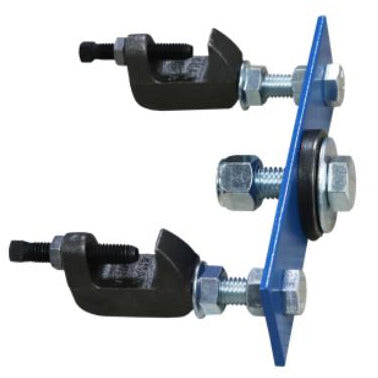

Beam clamp mount for Patterson High Velocity Fans with standard yoke mount.

Directions:

  • Place Beam Clamp Mount on webbing or flange.
  • Finger tighten set screws then turn additional ¼ to ½ turn to ensure proper engagement. Note: Set screws must engage the sloped side of the I-Beam. Beam Clamps can be reversed if needed.
  • Tighten jam nut to prevent loosening from vibrations.
  • Mount fan and yoke using provided 5/8” bolt.
  • Loop safety cable over beam and through yoke.
  • Feed ends of cable into saddle clamps and tighten.

Safety cable included
