Patterson Fan

Patterson | 18" High Velocity Fans

Patterson | 18" High Velocity Fans

$623.45
$623.45
Sale Sold out

Shipping Restrictions

We ship throughout the lower 48 states.

Bulk Orders

For Pricing on Multiple Units, Custom Freight Quotes & Commercial Discounts Contact Us

Request a Quote

To Request a Quote either use the Quote Request option at checkout (no payment information required) or Contact Us

View full details

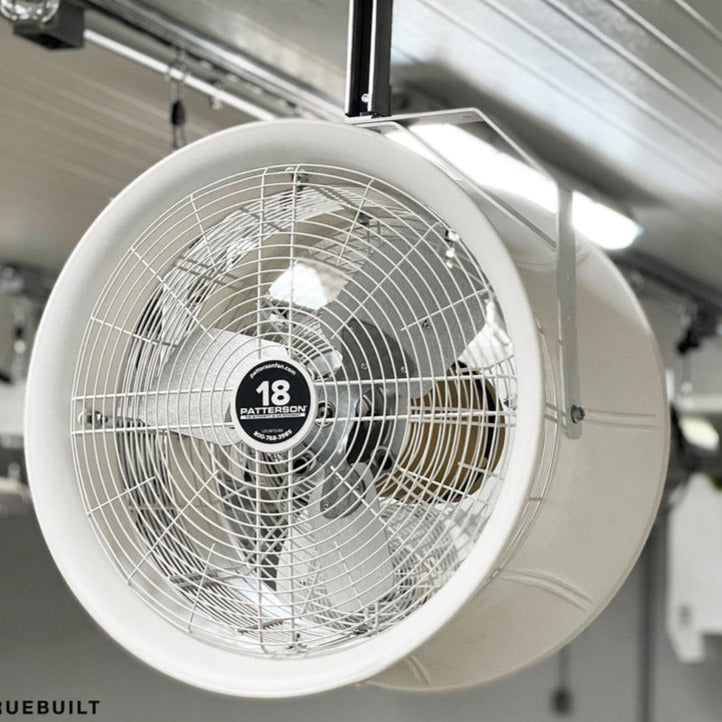

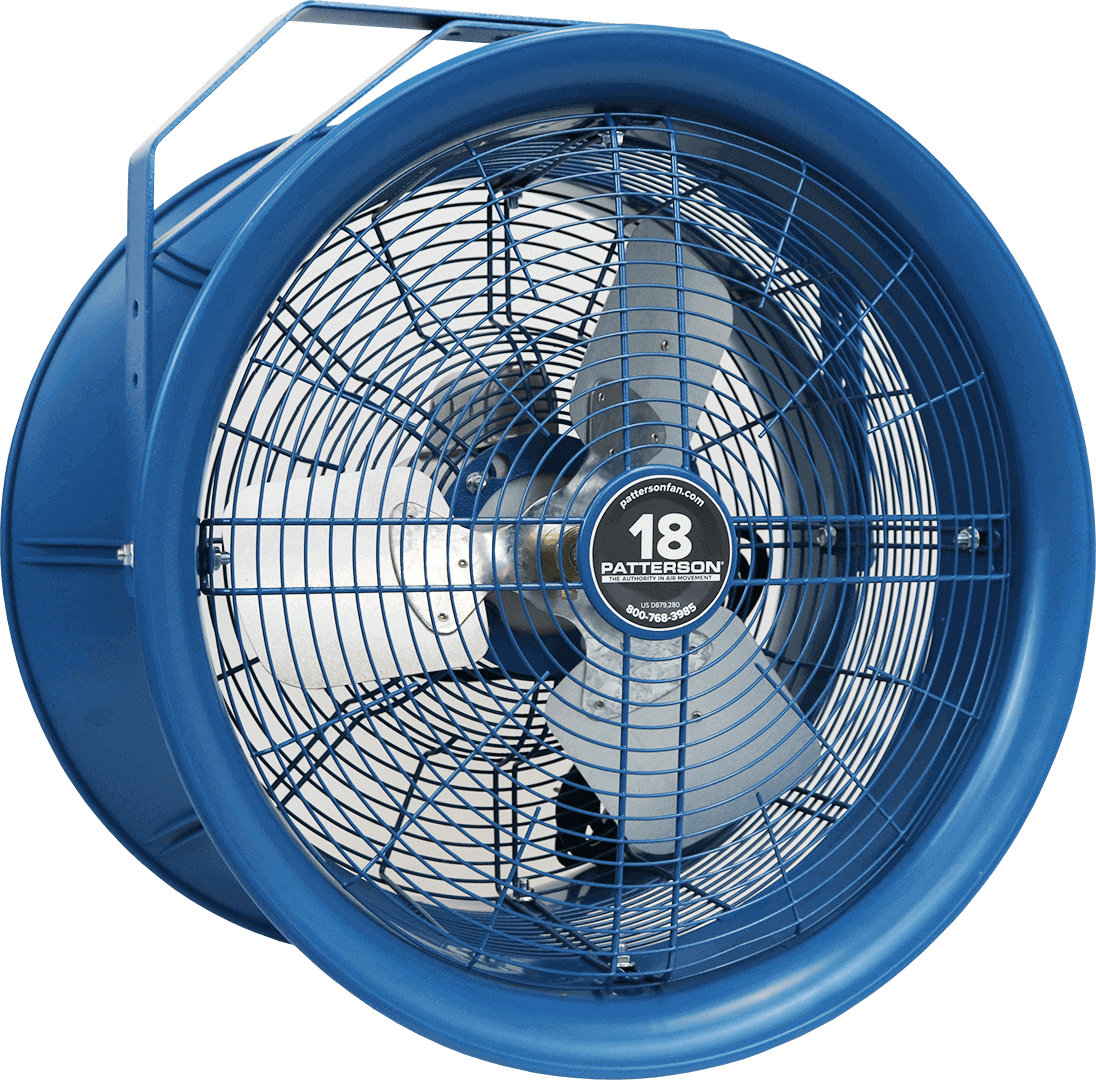

The Patterson 18" High-velocity industrial wall-mount fan has a high-rpm motor and a tubular housing for pushing air at higher speeds over longer distances than fans with a standard open-housing design. They provide more coverage than a typical industrial fan for cooling long aisles and large areas in warehouses and manufacturing plants. These air circulators can be suspended from a ceiling or mounted to a wall in areas with limited floor space. They have a totally enclosed motor to keep out dirt and dust.

Features:
  • Propeller: 17” Diameter, 3 Blade Galvalum, 33°
  • Fan Inlet/Outlet: High Impact Polypropylene
  • Finger Guards: OSHA Compliant
  • Power Cord (115V Only): 12’ Length (Switch Optional)
  • RPM: 1725
  • Decibels: 65.1 @ 20’ - 76.3 @ 3’
  • Coverage: 2700 ft²
  • Warranty: 2 Years
Motor:
  • Enclosure: TEAO Standard
  • Frame: 56
  • Ambient Temperature: 104°F
  • Duty Cycle: Continuous

Mounting:

  • comes standard with York Mount
  • additional mounting options available such as Clamp, Pole, Arm

Color:

  • Blue
  • White can be ordered for an extra $200 per entire order (not per fan)

These fans can be customized to your facility.  Please contact us to set up a consultative call so that we can discuss your order.

Ship within 7-14 business days. Lead times may vary during peak season. This is an industrial product; it was not designed for and is not intended for residential use. We will not accept orders that appear to be for residential use.
