Patterson Fan

Patterson | 26" High Velocity Fan

Patterson | 26" High Velocity Fan

$1,237.45
$1,237.45
Sale Sold out

Shipping Restrictions

We ship throughout the lower 48 states. Contact Us to see if specific items can be sent elsewhere.

Bulk Orders

Contact Us for Pricing on Multiple Units, Customized Freight Quotes & Commercial Discounts

Request a Quote

To Request a Quote you can go to Checkout and use the Quote Request Option (No Payment Details Necessary) or Contact Us

View full details

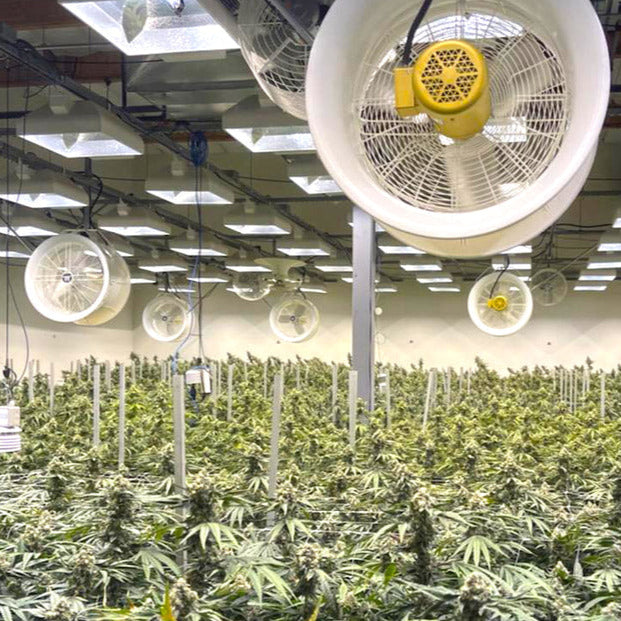

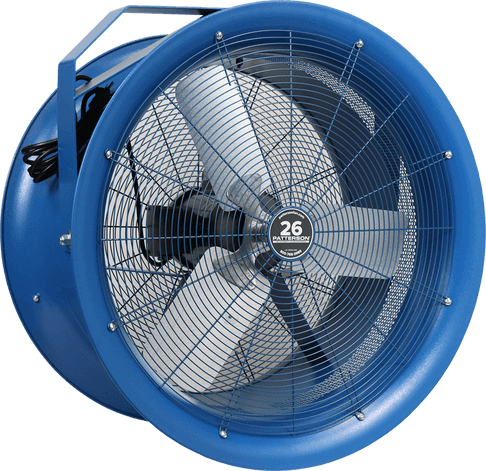

The Patterson 26" High-velocity industrial wall-mount fan has a high-rpm motor and a tubular housing for pushing air at higher speeds over longer distances than fans with a standard open-housing design. They provide more coverage than a typical industrial fan for cooling long aisles and large areas in warehouses and manufacturing plants. These air circulators can be suspended from a ceiling or mounted to a wall in areas with limited floor space. They have a totally enclosed motor to keep out dirt and dust.

Features:
  • Propeller: 26” Diameter, 3 Blade Galvalum, 18°
  • Fan Inlet/Outlet: 14 Gauge Spun Steel
  • Finger Guards: OSHA Compliant
  • Power Cord (115V Only): 12’ Length (Switch Optional)
  • RPM: 1800 (standard)/1200
  • Decibels: 80.8 @ 20’ - 85.2 @ 3’ (1800)
                             75.7 @ 20' - 81.3 @ 3' (1200)
  • Coverage: 6100 ft²
  • Warranty: 2 Years
Motor:
  • Enclosure: TEAO Standard
  • Frame: 56
  • Ambient Temperature: 104°F
  • Duty Cycle: Continuous

Mounting:

  • comes standard with York Mount
  • additional mounting options available such as Clamp, Pole, Arm

Color:

  • Blue
  • White can be ordered for an extra $200 per entire order (not per fan)

These fans can be customized to your facility.  Please contact us to set up a consultative call so that we can discuss your order.

Ship within 7-14 business days. Lead times may vary during peak season. This is an industrial product; it was not designed for and is not intended for residential use. We will not accept orders that appear to be for residential use.
