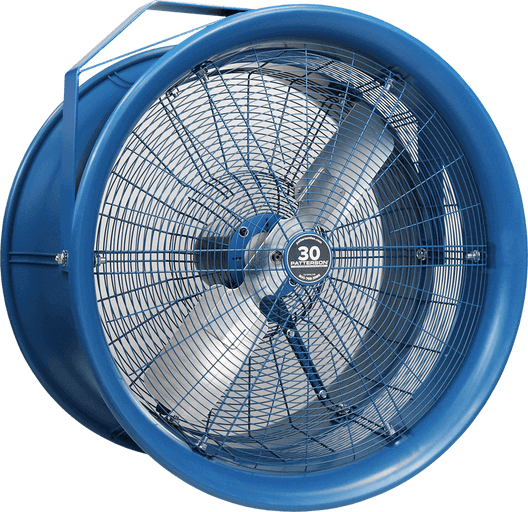

The Patterson 30" High-velocity industrial wall-mount fan has a high-rpm motor and a tubular housing for pushing air at higher speeds over longer distances than fans with a standard open-housing design. They provide more coverage than a typical industrial fan for cooling long aisles and large areas in warehouses and manufacturing plants. These air circulators can be suspended from a ceiling or mounted to a wall in areas with limited floor space. They have a totally enclosed motor to keep out dirt and dust.
- Propeller: 30” Diameter, 2 Blade Galvalum, 15°
- Fan Inlet/Outlet: High Impact Polypropylene
- Finger Guards: OSHA Compliant
- Power Cord (115V Only): 12’ Length (Switch Optional)
- RPM: 1800 (standard)/1200
- Decibels: 82.2 @ 20’ - 85.5 @ 3’ (1800)
- Coverage: 12,000 ft²
- Warranty: 2 Years
- Enclosure: TEAO Standard
- Frame: 56
- Ambient Temperature: 104°F
- Duty Cycle: Continuous
Mounting:
- comes standard with York Mount
- additional mounting options available such as Clamp, Pole, Arm
Color:
- Blue
-
White can be ordered for an extra $200 per entire order (not per fan)
These fans can be customized to your facility. Please contact us to set up a consultative call so that we can discuss your order.
Ship within 7-14 business days. Lead times may vary during peak season. This is an industrial product; it was not designed for and is not intended for residential use. We will not accept orders that appear to be for residential use.
