PHOTOBIO AC Power Link cable, 40A M25 Connector, 10Ft
PHOTOBIO AC Power Link cable, 40A M25 Connector, 10Ft
Shipping Restrictions
Shipping Restrictions
We ship throughout the lower 48 states. Contact Us to see if specific items can be sent elsewhere.
Bulk Orders
Bulk Orders
Contact Us for Pricing on Multiple Units, Customized Freight Quotes & Commercial Discounts
Request a Quote
Request a Quote
To Request a Quote you can go to Checkout and use the Quote Request Option (No Payment Details Necessary) or Contact Us

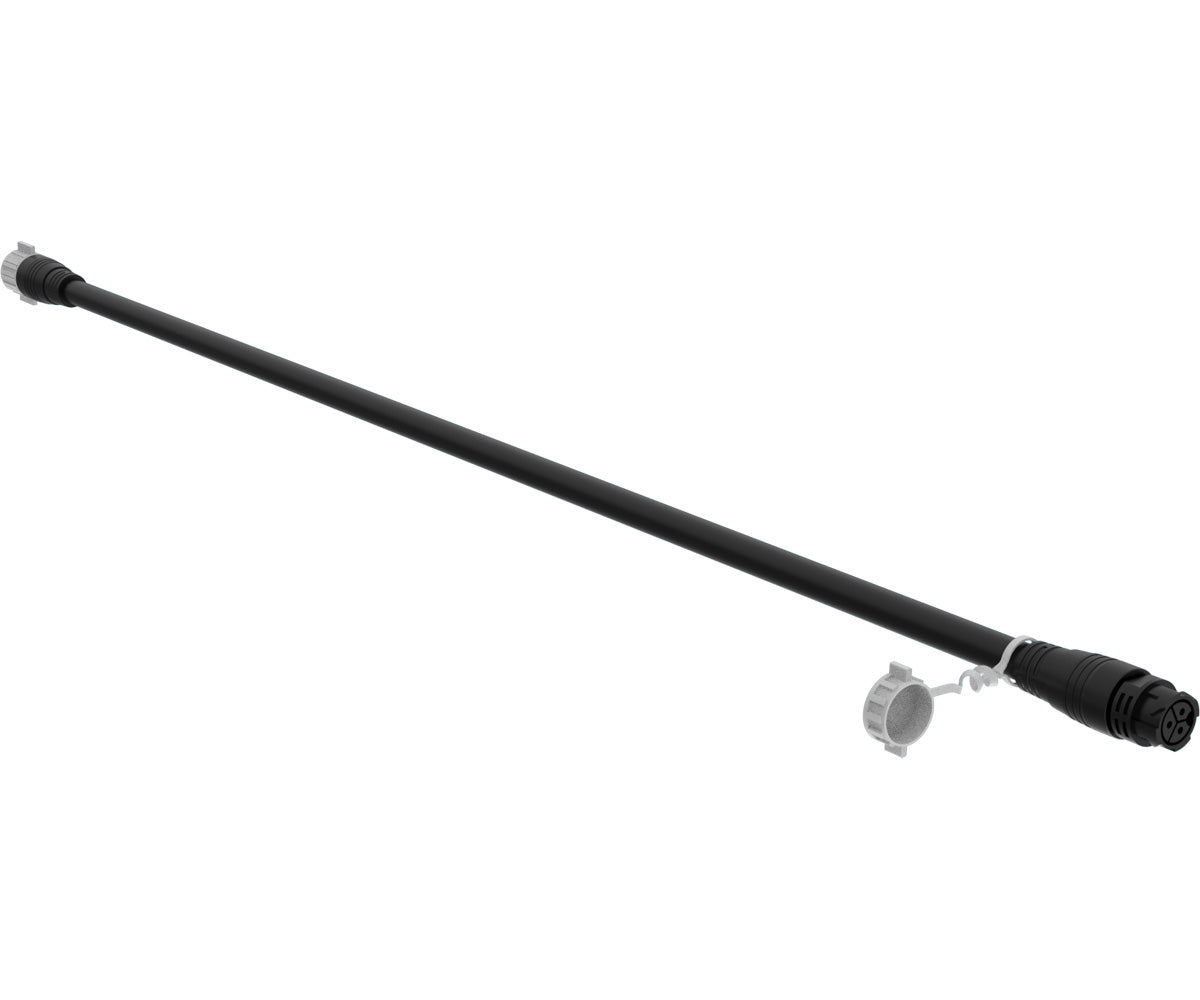

The 40 AMP PHOTOBIO AC Power Link Cable is a 10.0’ long “Trunk” line to carry AC supply. Linkable and used to span distances in any direction. Connect levels, bridge aisles, round corners, make the initial ceiling drop from Panel Mount, provide necessary side to side give for multilayer rolling rack systems and interface with Power T Cables.
Features heavy duty 10’ 10AWG braided flexible copper wiring with 40A capacity, convenient M25 male to female locking connections.
Cable and Male to Female daisy chain connections rated IP67 for enhanced dust and water protection.
VOLTAGE | MAXIMUM NUMBER OF DEVICES PER 40A CIRCUIT | ||||
---|---|---|---|---|---|
330W | 680W | 850W | 1050W | 1200W | |
120V | 10 | 5 | 4 | 3 | 2 |
208V | 18 | 9 | 7 | 6 | 5 |
240V | 22 | 11 | 8 | 7 | 6 |
277V | 24 | 12 | 9 | 8 | 7 |
347V | 32 | 16 | 12 | 10 | 9 |
480V | 44 | 22 | 17 | 14 | 12 |
