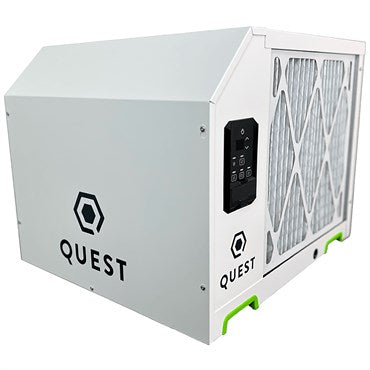

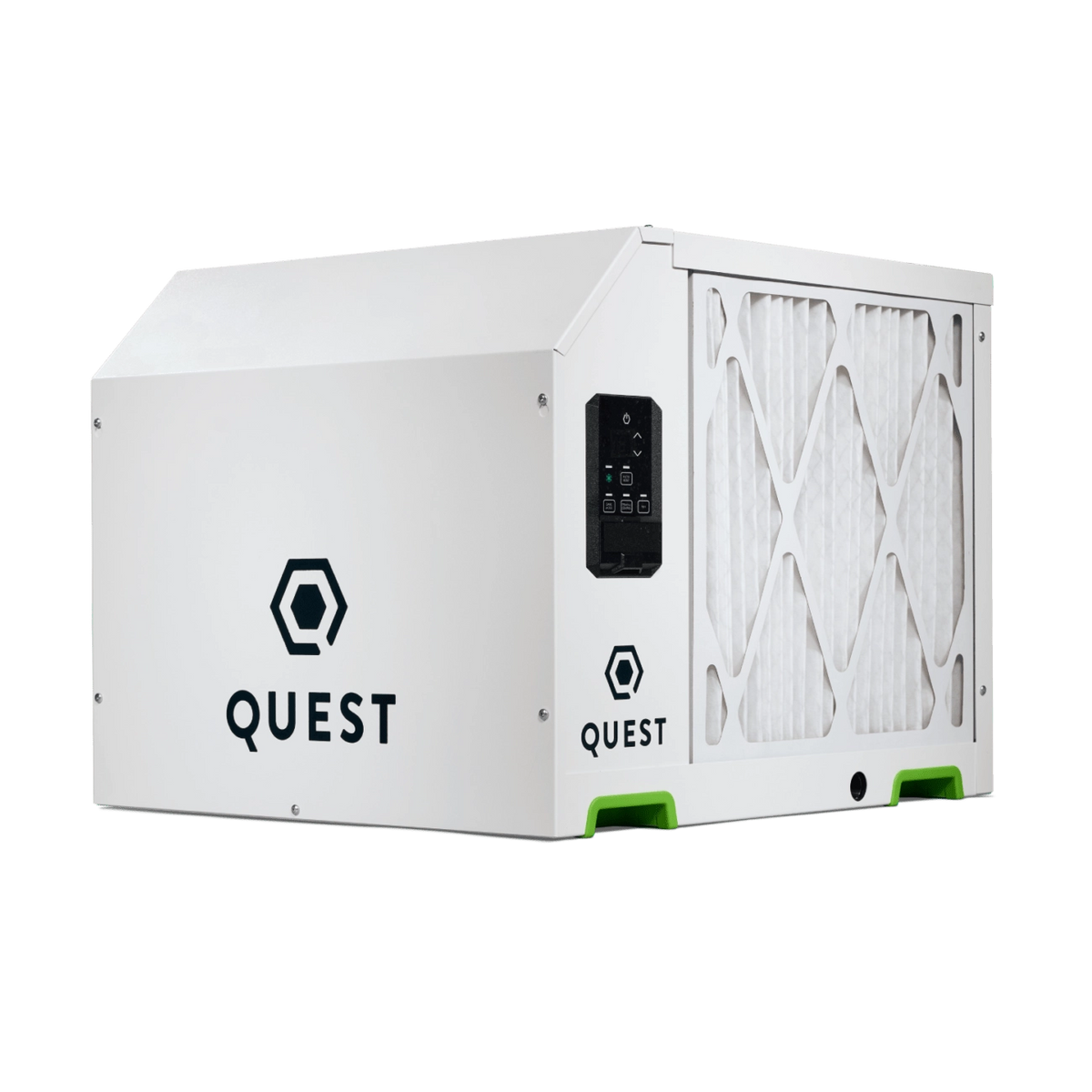

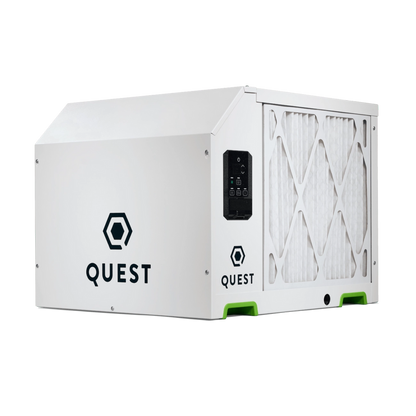

Quest 225 High-Efficiency Dehumidifier, 208-230V

The Quest 225 Overhead Dehumidifier is built for professional growers and commercial facilities that require reliable, energy-efficient humidity control. Capable of removing large amounts of moisture while producing less waste heat than many conventional dehumidifiers, the Quest 225 helps create a stable growing environment while reducing cooling costs. Quest's patented M-CoRR Technology maximizes water removal efficiency, while the integrated MERV-13 filtration system helps improve air quality by capturing dust, mold spores, mildew and other airborne particles. Its compact overhead design saves valuable floor space, while built-in lifting handles and hanging points simplify installation. With an easy-to-use digital interface, automatic restart after power outages, and compliance with California Title 24 energy standards, the Quest 225 is an excellent choice for commercial cultivation, greenhouse operations, and other demanding humidity control applications.

New Quest 225 units boast the unique patented M-CoRR technology. This multi-coil refrigeration design recycles excess heat to provide the highest efficiencies available on the market, reducing heat (BTUs) output into your space. In addition to industry-leading MERV-13 filtration, the 225 features Quest’s filter compensation technology. Filter compensation technology which increases fan speed as the filter becomes increasingly clogged with pollen, powdery mildew and dirt. This speed adjustment allows for the same amount of air to pass through the filter without reducing the cubic feet for minute (CFM). As a result, the Quest 225 is able to work consistently and constantly to optimize your grow room environment with maximum energy efficiency and consistency.

The Quest 225 Dehumidifier is designed to operate in temperatures between 56° and 95°F. In order to efficiently control humidity levels, the area in which the dehumidifier is to be operated must be free of water intrusion or excessive fresh (outside) air infiltration. Before installing the Quest 225 Dehumidifier, water intrusion and air infiltration problems should be addressed or noted in calculations.

Specifications:

• Capacity: 225 Pints/Day
• Power: 1230 W
• Power Cord: 6ft 14/3, SJTW / NEMA 6-15P
• Voltage: 208/230 V
• Current Draw: 5.5 Amps @ 230 V, 6.1 Amps @ 208 V
• Energy Factor: 3.6 L/kWh
• Operating Temperature: 56-95° F
• Airflow: 630 CFM
• Thermal Capacity (Total): 14,400 BTU
• Thermal Capacity (Motor Load): 4,200 BTU
• Thermal Capacity (Heat of Condensation): 10,200 BTU
• Refrigerant Type: R454B
• Refrigerant Charge: 52oz
• Drain Port Connection: 3/4in Threaded NPT
• Filter Rating: MERV 13
• Filter Size: 18in x 18in x 2in
• Dimensions: 26.8in x 23.6in x 20.9in
• Certifications: UL Rated, ETL Listed, CSA
• Weight: 130lb

Applications: Hydroponics, aeroponics, greenhouses, nurseries, indoor farming, seed storage, urban farming, tower gardens, vertical farming, aquaponics, commercial grow operations, CEA facilities, instrumentation rooms, laboratories, product development facilities, research facilities, cold storage facilities, mechanical and equipment rooms, clean-room environments, server rooms, switch centers, terminals, switchgear rooms, data centers, electronics manufacturing and storage, distribution centers, industrial spaces, military warehouses and much more.
