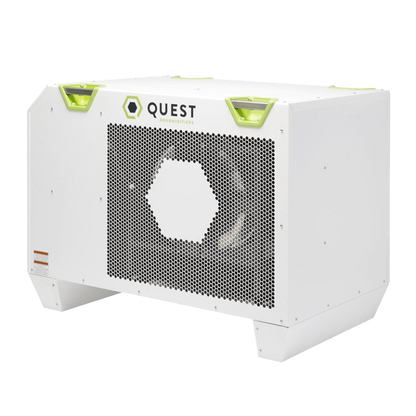

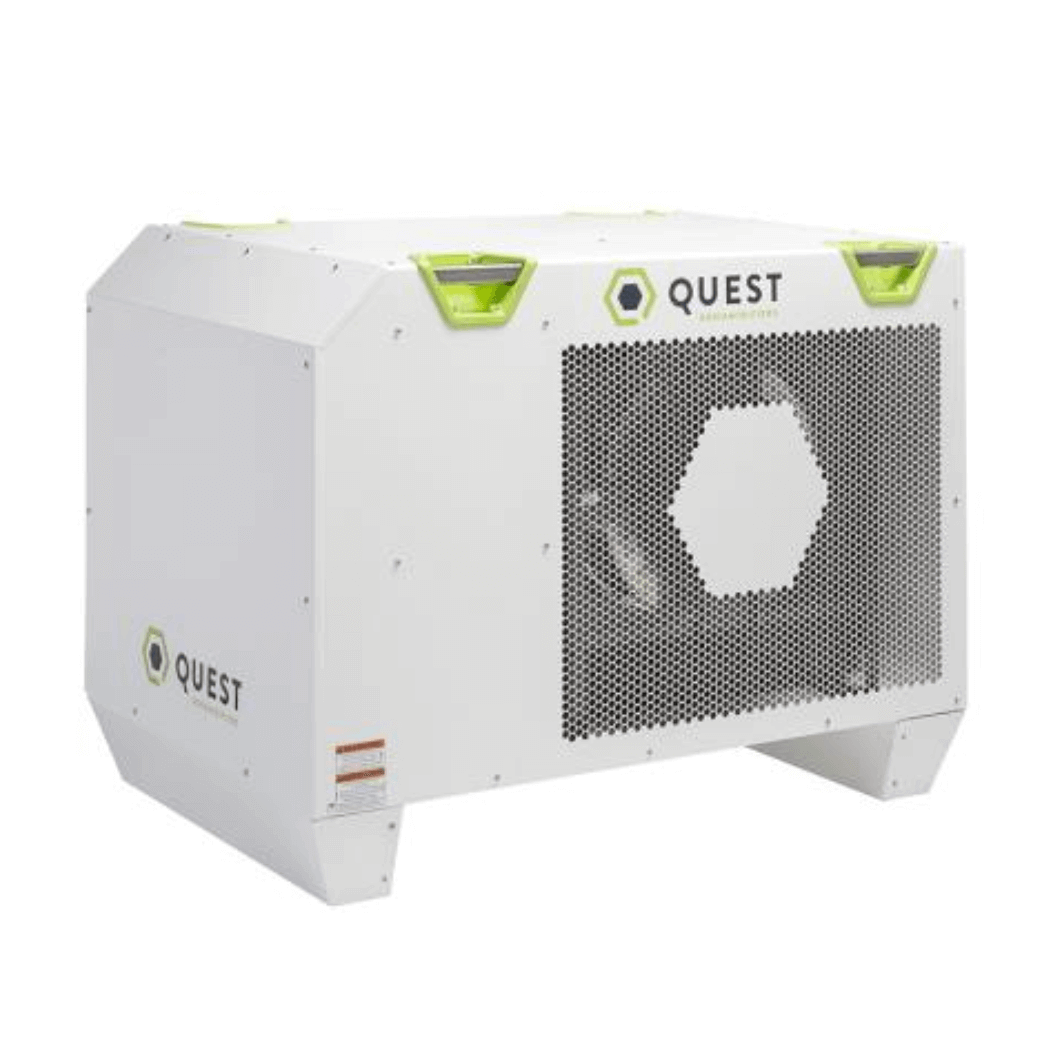

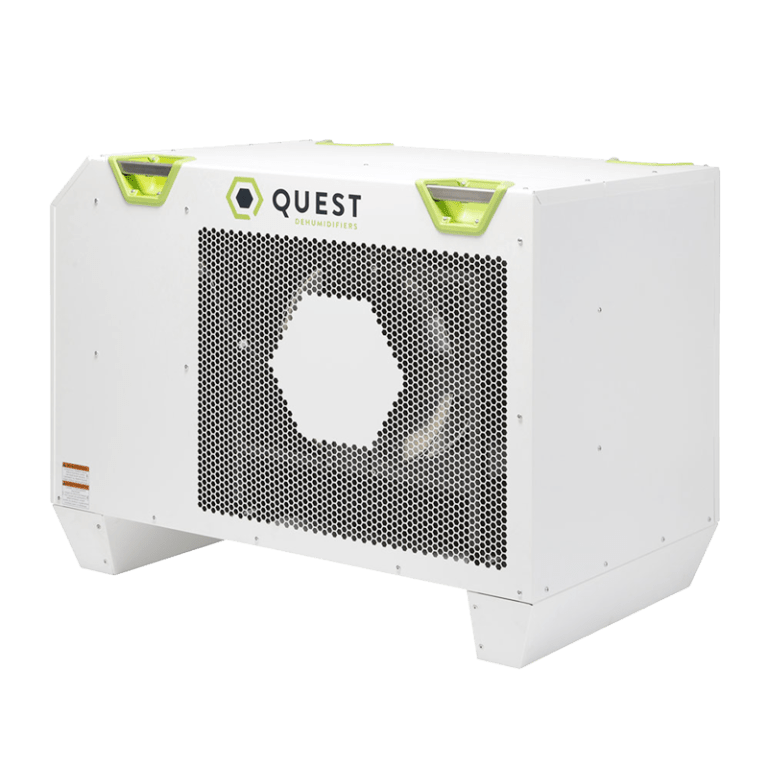

Quest 506 High-Efficiency Dehumidifier

The Quest 506 Commercial Dehumidifier is built for large-scale cultivation facilities, greenhouses, warehouses and industrial applications where maximum moisture removal is essential. Removing up to 506 pints of water per day, the Quest 506 delivers exceptional performance while maintaining excellent energy efficiency, making it ideal for facilities operating around the clock. Its high-capacity airflow, commercial-grade construction and compatibility with ducted installations allow it to integrate seamlessly into demanding environmental control systems.

The Quest 506 also includes a MERV 13 filtration system, effectively removing contaminants such as dust, pollen, mold, bacteria, and some viruses. Engineered and assembled in Madison, Wisconsin, this dehumidifier is backed by a 5-year warranty and meets California Title 24 requirements for both ducted and non-ducted installations. With its low amp draw, wide operating range, and safety certifications, the Quest 506 provides a reliable, energy-efficient solution for high-capacity humidity control.

Specifications @ 80°F/60% RH:

• Capacity: 500 Pints/Day
• Power: 2250W
• Power Cord: 208–230V - NEMA 6-20P, 277V - NEMA L7-20P

• Current Draw: 9.88 Amps @ 230V, 10.92 Amps @ 208V, 8.2 Amps @ 277V
• Blower: 1150 CFM
• BTU (Total): 30500
• BTU (Motor Load): 7700
• BTU (Heat of Condensation): 22800
• Operating Temperature: 56-95° F
• Energy Factor: 4.4 L/kWh
• Efficiency: 9.2 Pints/kWh
• Air Filter Rating: Merv 13
• Filter Size: 18in x 20in x 2in
• Refrigerant: R454B
• Refrigerant Charge: 62oz
• Drain Port Connection: 3/4in Threaded NPT
• Certifications: ETL/UL/CSA
• Dimensions: 28.9in x 34.1in x 44.8in

FOR COMMERCIAL PRICING CONTACT US
