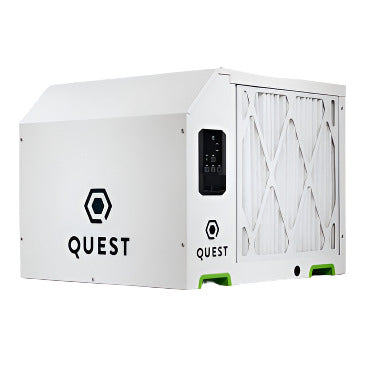

Quest 506 High-Efficiency Dehumidifier

The Quest 506 Overhead Dehumidifier is a high performance solution designed for demanding agricultural and commercial applications. With a remarkable 506-pint capacity, it stands as one of the most powerful commercial dehumidifiers on the market. Featuring patented M-CoRR Technology, this unit recycles excess heat for optimal efficiency while minimizing heat output into the space. Ideal for use in indoor growing facilities, greenhouses, and warehouses, it offers flexible installation options, including overhead or ground placement.

The Quest 506 also includes a MERV 13 filtration system, effectively removing contaminants such as dust, pollen, mold, bacteria, and some viruses. Engineered and assembled in Madison, Wisconsin, this dehumidifier is backed by a 5-year warranty and meets California Title 24 requirements for both ducted and non-ducted installations. With its low amp draw, wide operating range, and safety certifications, the Quest 506 provides a reliable, energy-efficient solution for high-capacity humidity control.

Specifications @ 80°F/60% RH:

• Capacity: 500 Pints/Day
• Power: 2250W
• Power Cord: 208–230V - NEMA 6-20P, 277V - NEMA L7-20P

• Current Draw: 9.88 Amps @ 230V, 10.92 Amps @ 208V, 8.2 Amps @ 277V
• Blower: 1150 CFM
• BTU (Total): 30500
• BTU (Motor Load): 7700
• BTU (Heat of Condensation): 22800
• Operating Temperature: 56-95° F
• Energy Factor: 4.4 L/kWh
• Efficiency: 9.2 Pints/kWh
• Air Filter Rating: Merv 13
• Filter Size: 18in x 20in x 2in
• Refrigerant: R454B
• Refrigerant Charge: 62oz
• Drain Port Connection: 3/4in Threaded NPT
• Certifications: ETL/UL/CSA
• Dimensions: 28.9in x 34.1in x 44.8in
