TrolMaster Environmental Control Systems: Miscellaneous Controls

The DSC-1 CO2 control/device module allow the user to easily connect and control standard supplemental CO2 devices or CO2 exhaust controls to the Hydro-x. This module allows control of any CO2 device under the world voltage standard (100-240 VAC, 50/60 Hz), up to 10-amps. The 240 option is DSC-2.

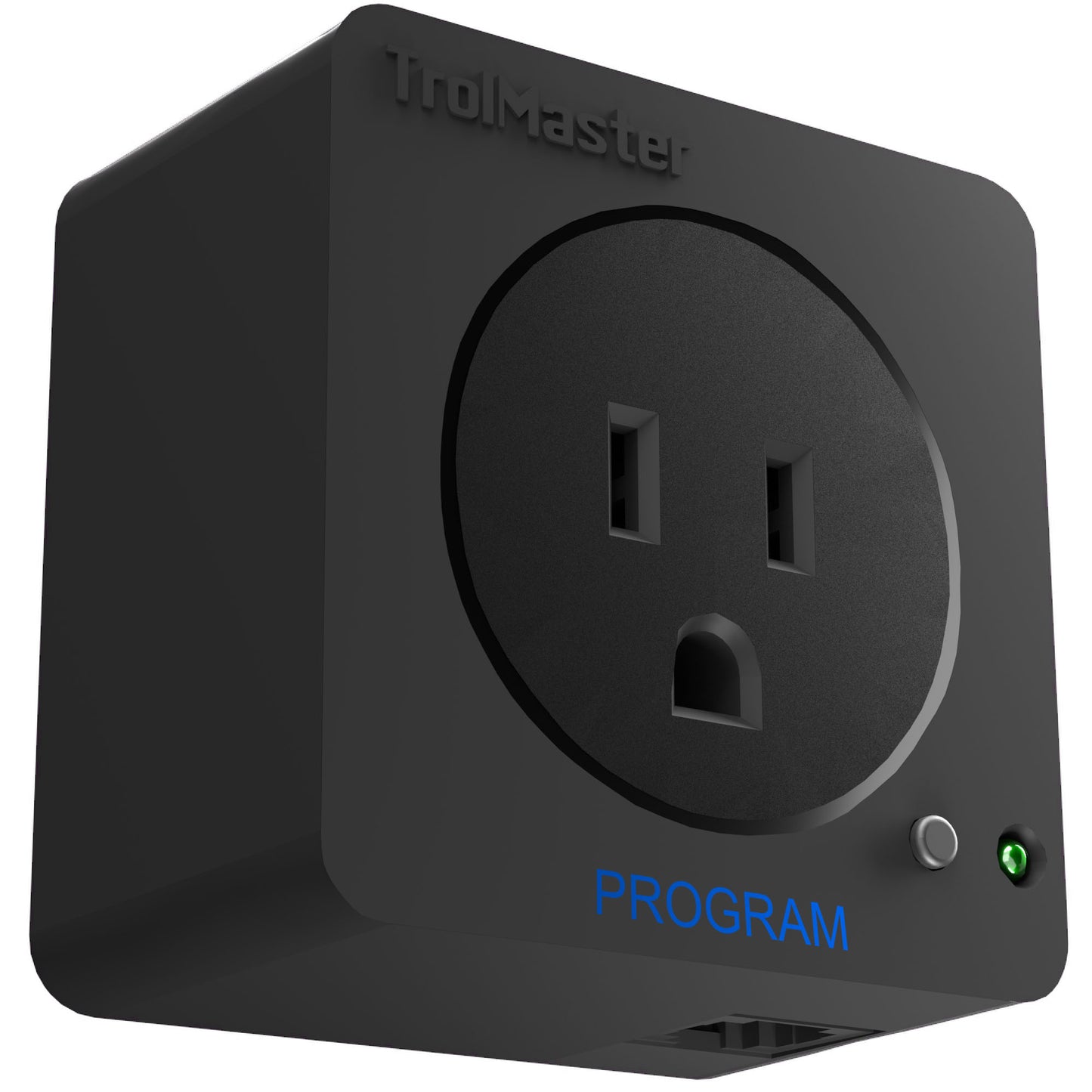

The DSP-1 program device module (timer module) works like a multi-function timer. The DSP-1 allows the user to easily connect any device that needs to be controlled by TIME to the Hydro-x.  The DSP-1 allows control of any device under the world voltage standard (100-240 VAC, 50/60 Hz), up to 10-amps.

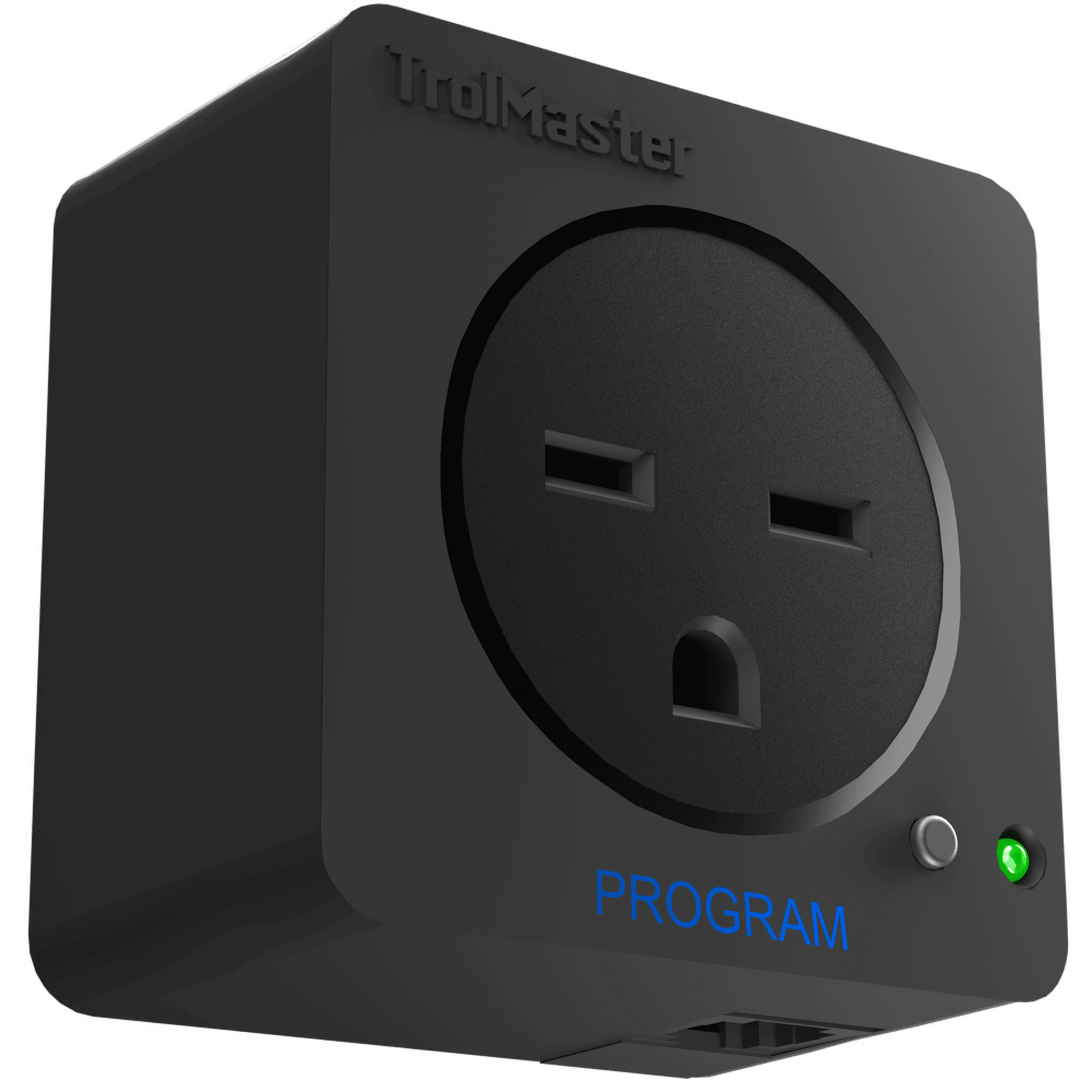

The DSP-2 program device module (timer module) works like a multi-function timer. The DSP-1 allows the user to easily connect any device that needs to be controlled by TIME to the Hydro-x.  The DSP-2 allows control of any device under the world voltage standard (100-240 VAC, 50/60 Hz), up to 10-amps.

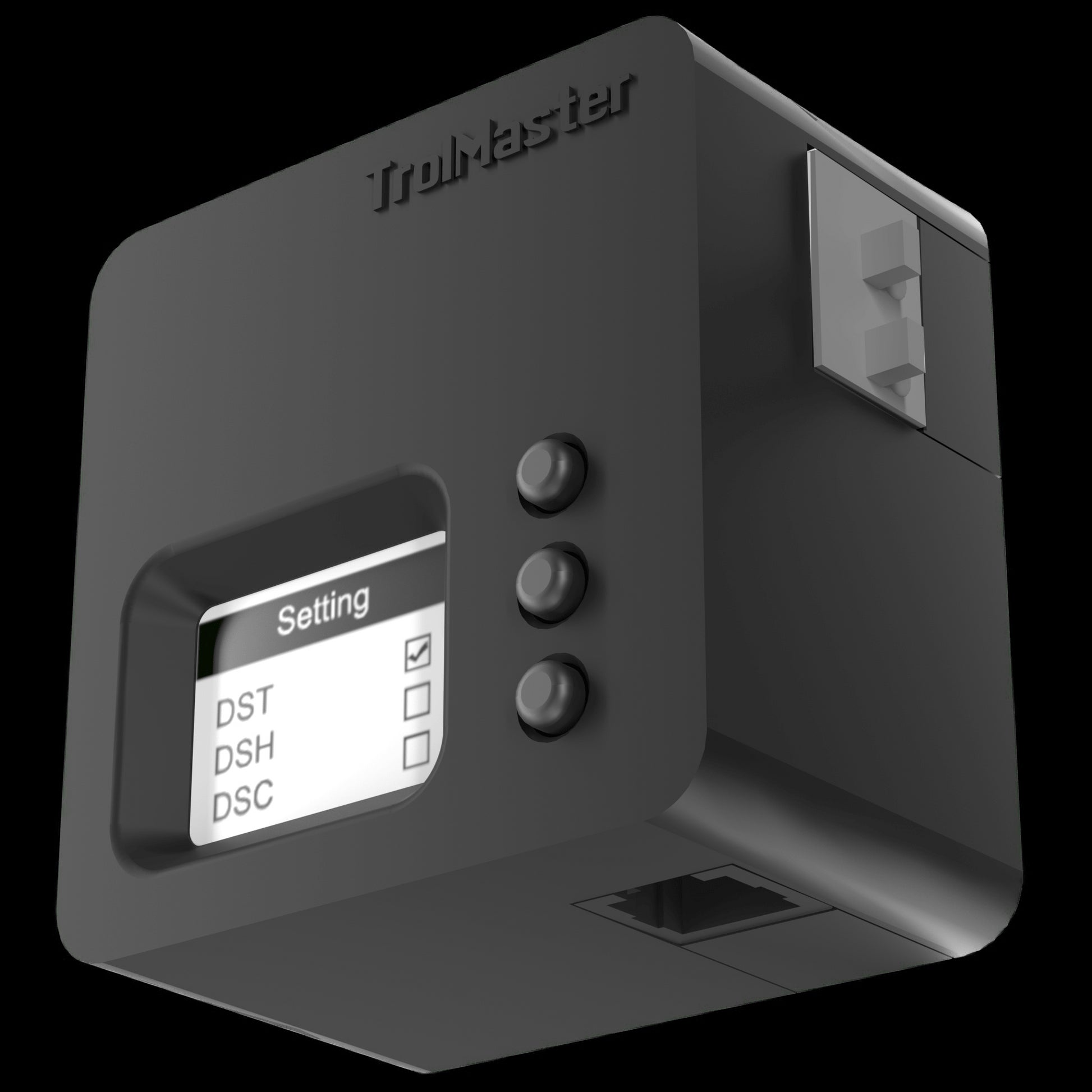

The DSD-1 Dry-contact module provides a simple and flexible solution to the user’s who want to connect & control devices to the Hydro-X using a “dry-contact” or relay to activate the device. Some equipment requires either normally open or normally closed contact closure in order to activate the equipment. The DSD-1 is the product that you need to control those types of devices. It can be configured to work as the other Trolmaster power modules work, such as DST, DSH, DSC, DSH.  Comes with a cable set.

The DSD-3 Relay Device Station is a highly versatile peripheral driver designed to control the ON/OFF state of your terminal devices. Seamlessly integrating with TrolMaster’s advanced ecosystem—including the Hydro-X, Aqua-X, Carbox-X, and Green-X controllers.  The DSD-3 allows for precise, automated environmental control. Featuring a single relay with both a normally open (NO) and a normally closed (NC) contact, the DSD-3 gives you the flexibility to easily switch between two channels, ensuring your grow room remains clean, reliable, and automated from day one. DSD-3 provides a dry‑contact output only; it functions solely as an isolated switch with a contact rating of 1A.

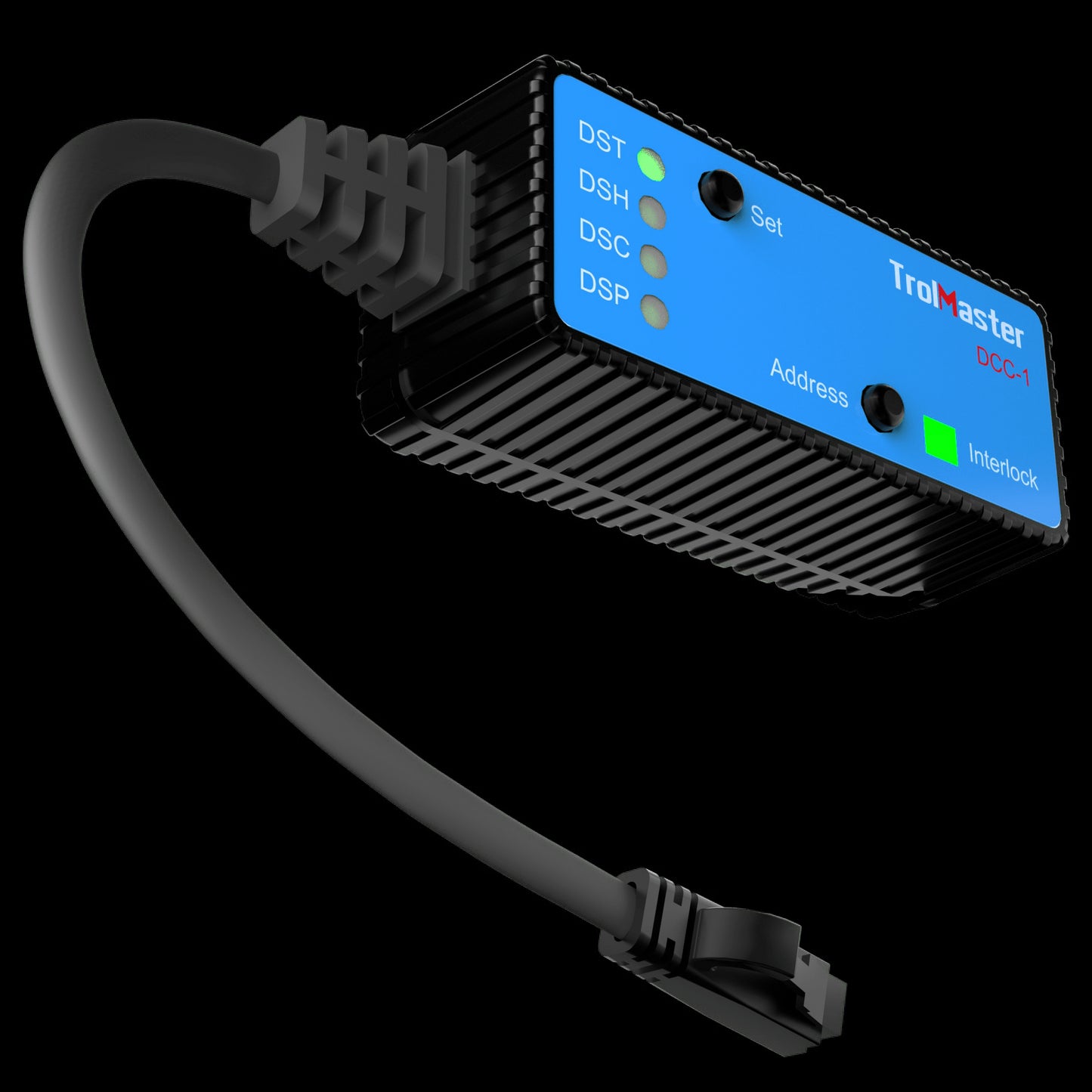

The DCC-1 provides a simple solution to control a single device, with more than one condition. For example, people like to turn on their exhaust fans when either temp or humidity is too high; shut off CO2 when turn on exhaust fans. There are many other examples where two conditions can be either combined or split. The DCC-1 is designed to be used in combination with one of TrolMaster’s plug-in style module. (DSC-1, DSH-1/2, DST-1/2, DSP-1/2, DSV-1 and DSD-1). Once connected to the plug-in module using the RJ12 cable built-into the DCC-1, the DCC-1 will act in concert with that plug-in module to control whatever device is connected to the plug-in module.

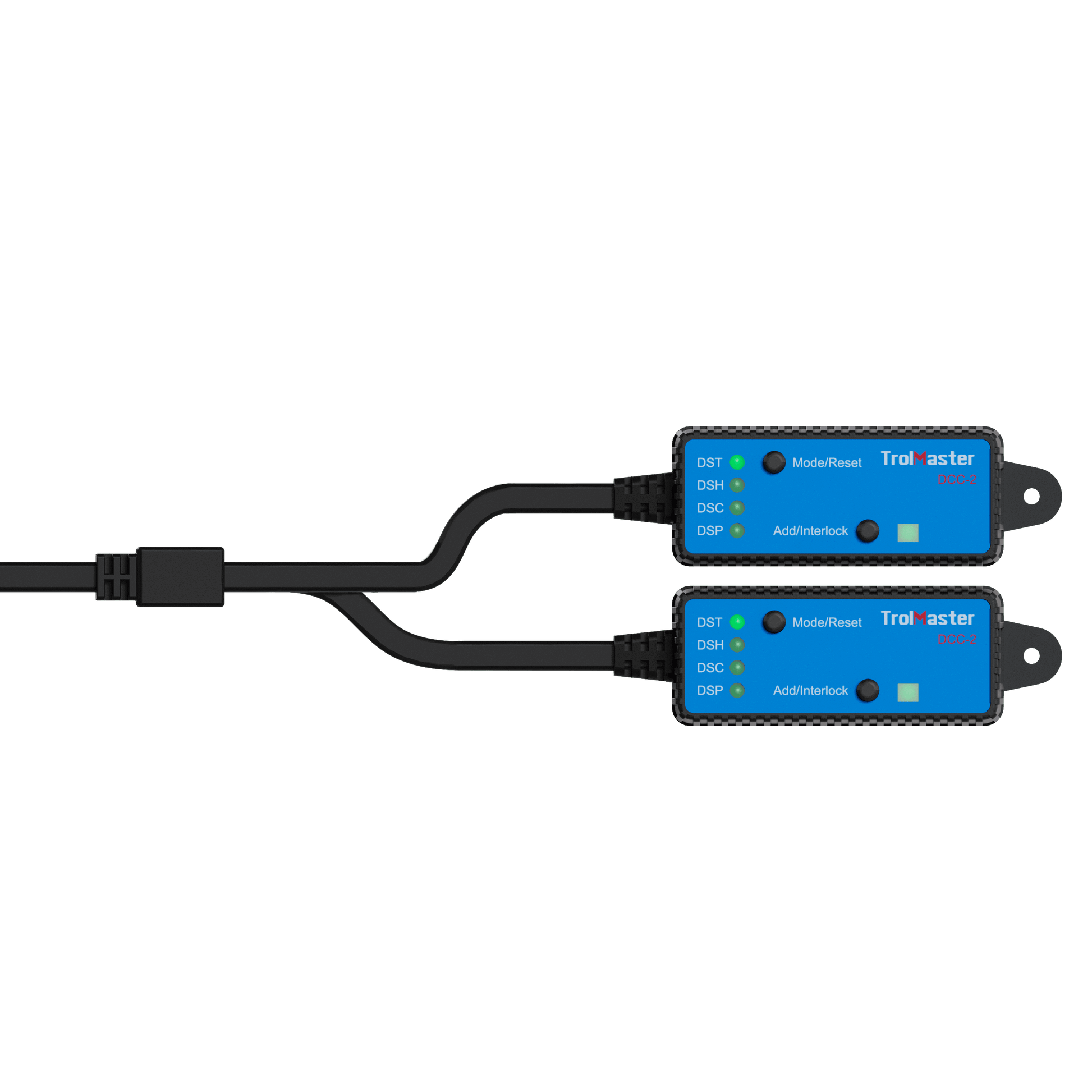

The DCC-2 Dual System Control Adapter can connect up to two controllers, providing a simple solution for controlling a single device with multiple conditions. For example, if an exhaust fan is assigned for climate control by the Hydro-X system, the DCC-2 enables the same exhaust fan to also be addressed to Carbon-X for emergency CO2 exhaust purposes.  The DCC-2 is designed to be used in combination with one of TrolMaster's plug-in style modules. (DSC-1, DSH-1/2, DST-1/2 , DSP-1, DSD-1, DSV-1). Once connected to the plug-in module using the RJ12 cable built into the DCC-2, the DCC-2 will act in concert with that plug-in module to both 2 controllers, whatever device is connected to the plug-in module.

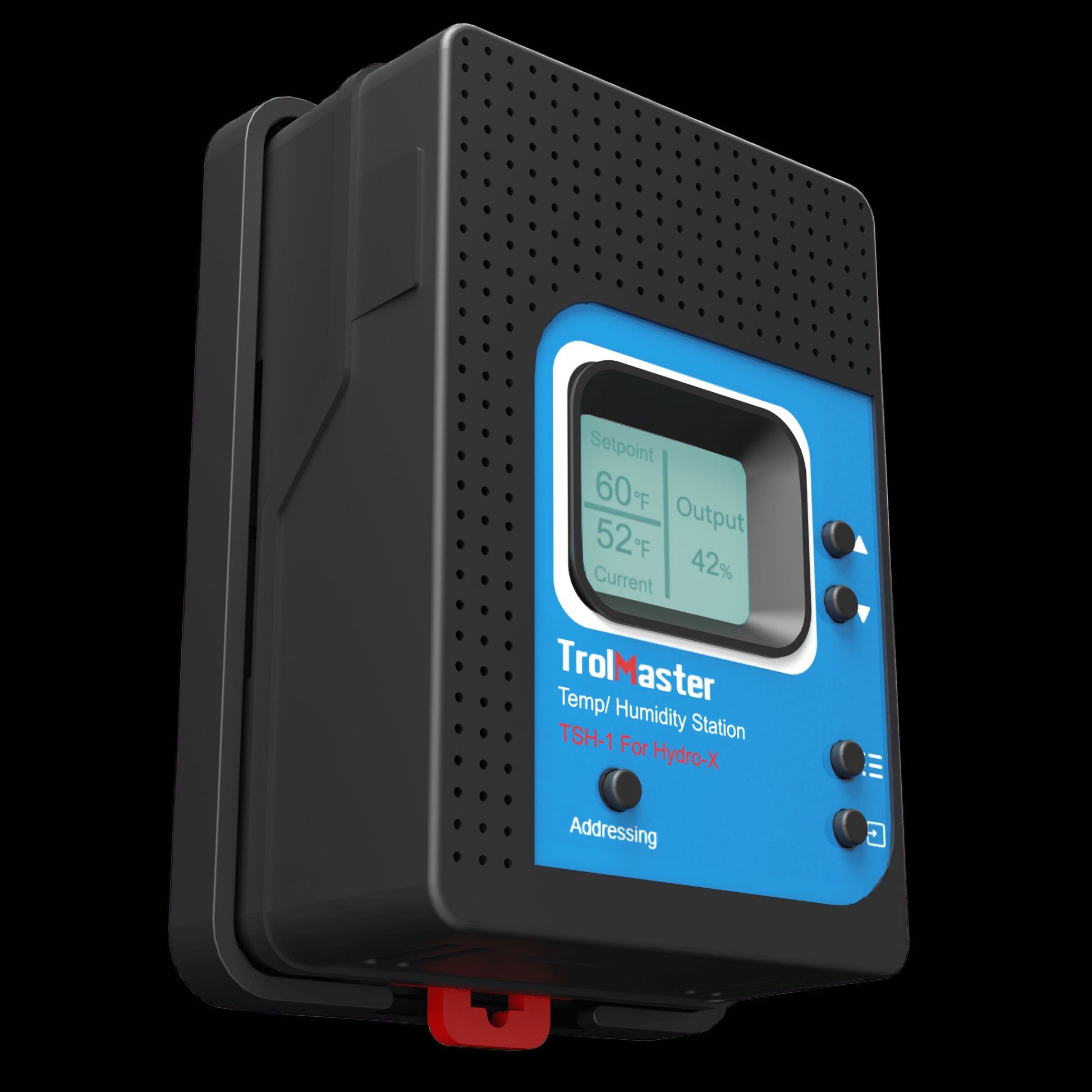

The TSH-1 Temperature / Humidity Station is a 0-10 volt analog output control station that works with the HCS-1, HCS-2 and HCS-3 controllers. The TSH-1 can be configured to control either a temperature or a humidity device that requires a variable 0-10 volt input signal. The TSH-1 is capable of controlling variable speed fans, vents or any other device that accepts a 0-10 volt input. It features separate day and night “idle” speed settings built-into the TSH-1 as well as separate Day / Night setpoints accessed through the HCS controller.

The DSV-1 is a low-voltage output module that can be used on the Hydro-X and Aqua-X controllers. The DSV-1 can be addressed to be used as a temperature, humidity, CO2, or timer device module. Multiple voltage outputs are selectable by the user. The DSV-1 can output either 12 or 24 VDC up to .5 amps, or 12 or 24 VAC up to 4.8VA. Once the module is configured it will activate the low-volt device wired to the DSV-1.  This allows the user to directly connect low-voltage devices such as solenoids, valves, audio visual alarms or any other device that requires 12 to 24-volt AC or DC power to operate. *By pressing and holding the top button on the DSV-1, users can manually override the module and turn it ON / OFF.

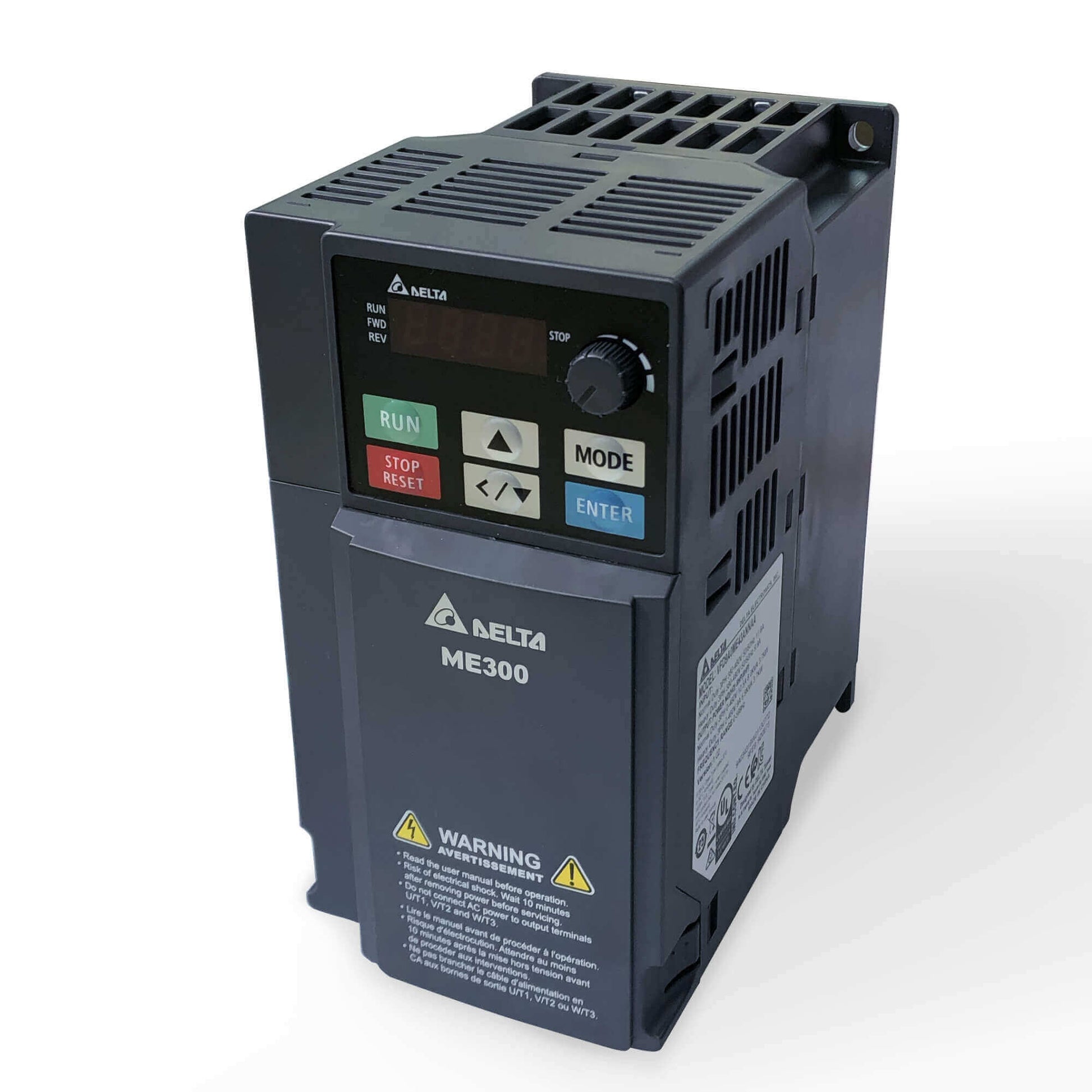

The Delta-1 is one of the possible variable-frequency drive (VFD) that can be used with Trolmaster's VFD-1 module. The Delta-1 and the VFD-1 can be used with the TrolMaster Hydro-X Pro system to control the speed of 3-phase AC motors (industrial fans etc.). An RJ45 cable is included for connecting the Delta-1 with the TrolMaster VFD-1 module. This customized version has all the required parameters preset and ready to be operated with VFD-1 module straight out of the box. *VFD drives can only operate 3 phase fans / motors. Single phase motors cannot be used with the VFD-1 or the Delta-1 VFD drive.

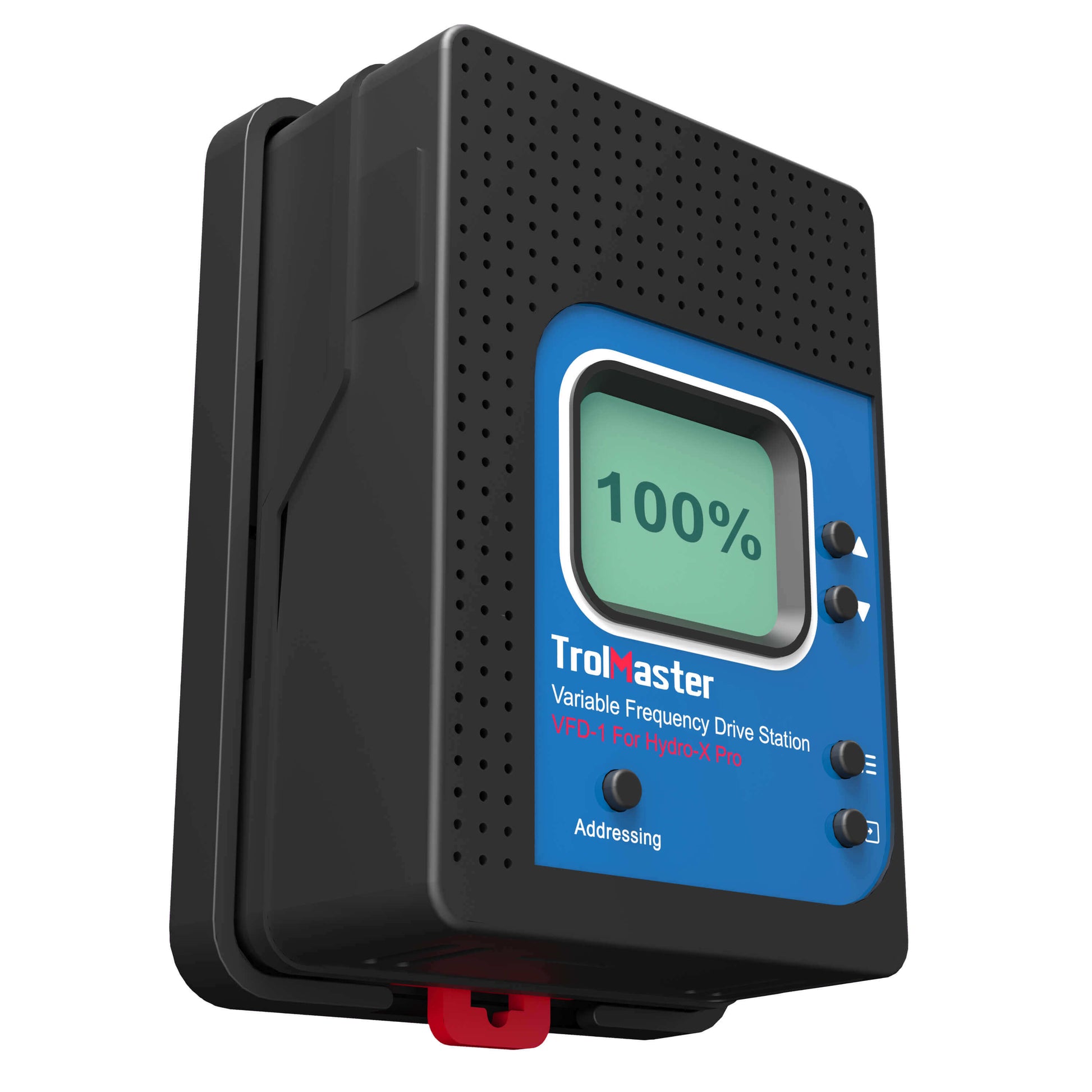

VFD-1 Variable Frequency Drive is specifically designed to control Inverters including TECO E510, DELTA ME300, ABB ACS355 (with an FMBA-01 module) etc. with the Hydro-X Pro controller for the purpose of controlling and adjusting the speed of industrial fans in your application. There is no need to provide power supply for the VFD-1 unit. It can be connected to the Hydro-X Pro with a simple RJ12 phone cable.

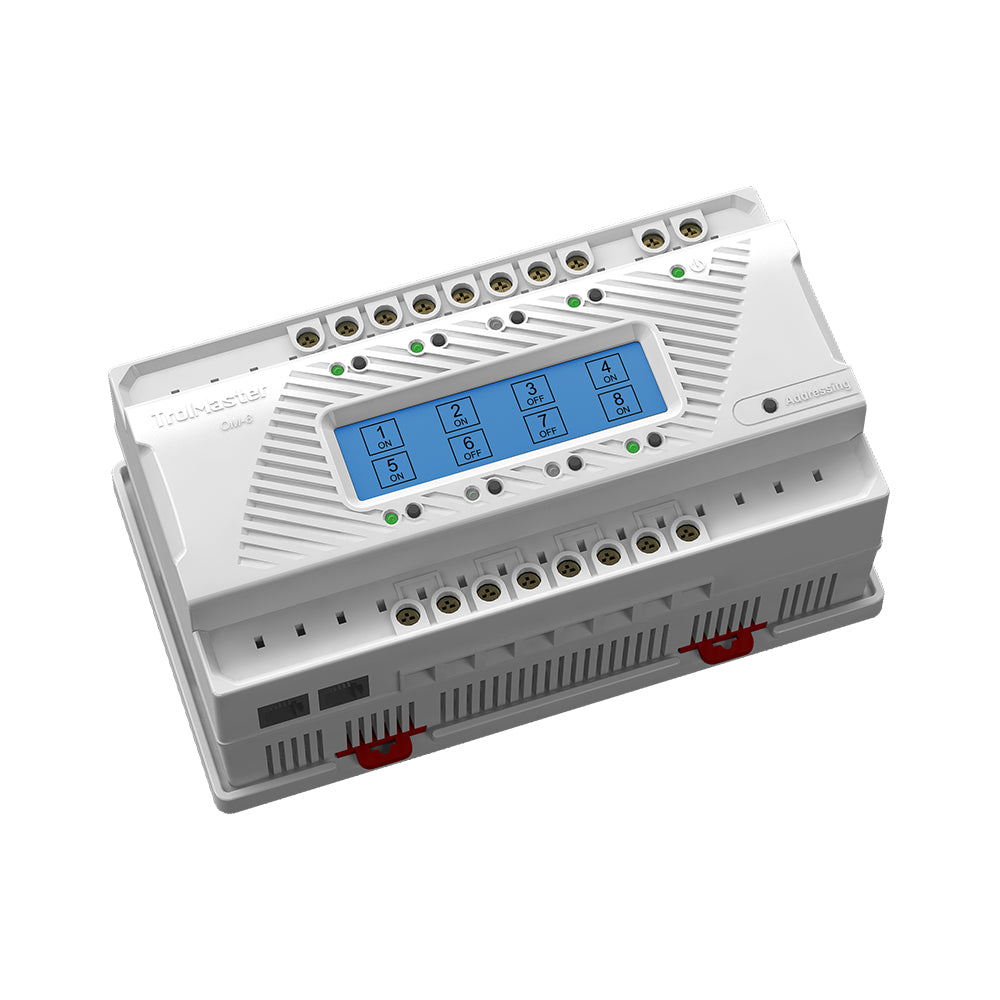

The OM-8 dry contact board allows the main controller to control up to 8 individual outputs on it. It is specially designed for the Hydro-X Pro and Aqua-X Pro system. It has 8 individual electrical contacts, and allows up to 12 Amp current through each contact. *The OM-8 should be mounted inside an electric control cabinet, and connected to a power supply between 100-240 VAC. *When used with the Aqua-X Pro system, OM-8 can activate pumps/solenoids at a higher amperage of 12 A.

The Relay Device Station 25amp 100-277V (DSR-1) is a high-current output module(up to 25-Amp) compatible with Hydro-X, Aqua-X, Carbon-X, and Green-X control systems. The DSR-1 can be configured as a temperature (DST), humidity (DSH), CO2 (DSC), or timer (DSP) device module. It is designed with overload protection. The DSR-1 supports up to 25 amps, ensuring reliable operation of connected equipment.
